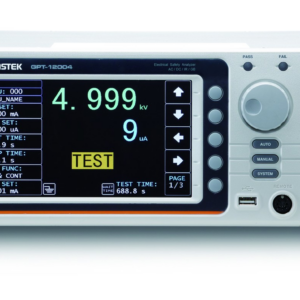

GPT-12000 Electrical Safety Analyzer
Features
- 200VA AC Test Capacity
- Comply with IEC 61010-2-034
- 7”TFT LCD
- Manual / Auto Mode
- True RMS Current Measurement
- Zero Crossing Turn-on Operation
- Controllable Ramp-up & Ramp-down Time
- Capacitive Load Testing Capability up to 47μF
- Statistics Function
- Sweep Function for DUT Characteristic Analysis
- USB Storage available
- Rear panel output available
- Interface : RS-232C, USB host/device, Signal I/O and GPIB (optional)
- Universal power input
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
GW Instek introduces the flagship model (200VA output capacity) safety analyzer-the GPT-12000 series, which is the first safety analyzer in the world to comply with IEC 61010-2-034 (Safety requirement for electrical requirement for measurement, control and laboratory use – particular requirements for measurement equipment for insulation resistance and test equipment for electric strength), which stipulates that the requirements of the software and hardware interfaces must be followed while designing high voltage and insulation resistance test and measurement instruments so as to ensure that users are provided with necessary protection and warning while using the instruments.
Analyze Your Safety Tests
Meets IEC 61010-2-034 design requirements
High Accuracy and High Resolution Testing Performance
Flexible supplementary testing mechanism
Statistic and analysis
Sweep and tabular automatic test
Complete test data retrieval interface
