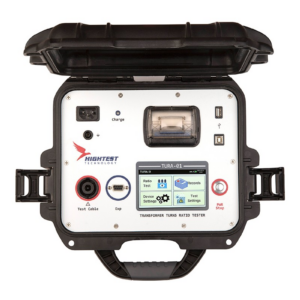

HighTest TURA-01
TURA-01 is designed using advanced engineering technology to measure the turns ratio of single-phase and three-phase transformers. TURA-01 has fast, easy and accurate TTR measurement features for current, voltage and power transformers using its user-friendly software. TURA-01 is one of the most accurate devices with its wide range (0.8 to 33,000) ratio measurement capability and high precision (0.08 %).
- Description
Description
A 4.3-inch touch display allows TURA-01 to show all measurement results on a single screen. USB, Bluetooth (Option) and Flash Memory features allow TURA-01 to control, record and store measurement results (up to 100 Test Records). With the HighTest Data Management Platform (DMP Software), users can control TURA-01 and analyse measurement results. Operators can easily print the measurement results with the 2.25-inch built-in Printer of TURA-01. Multi-language capability and user-friendly operation menu make it easy to control TURA-01, even by less trained staff.
By using the optional TPA-03 Three Phase Adapter, the user can make 3-phase connection and can test all phases simultaneously.
TURA-01 is a light, compact and rugged device with the protection of IP67 (case closed).
Features:
Turns Ratio Measurement
(Single-phase and three-phase measurement)
- Ranges from 0.8 to 33,000 ratio measurement
- High accuracy (0.08 %)
- 1V, 4V, 10V, 40 V and 100 V AC test voltage
- Ratio error measurement
- Excitation current, phase angle, polarity measurement
- Built-in printer
- Internal memory, USB Flash Drive
- PC control via USB cable
- Optional Bluetooth control and communication
- 4.3-inch large colour touch display
Optional expansion feature with Three- Phase Adapter (TPA-03)
