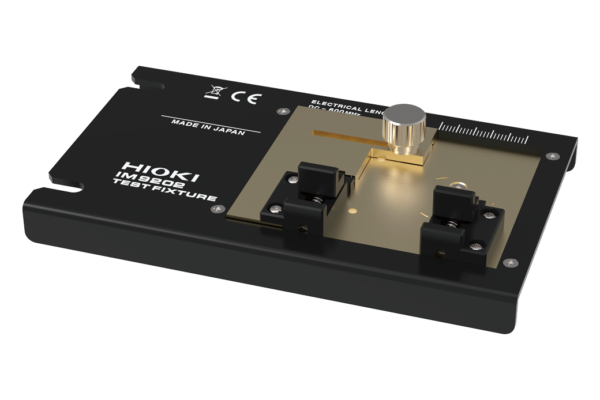

HIOKI TEST FIXTURE IM9202
All-In-One Test Fixture for High Frequency 600 MHz Testing of a Diverse Range of Components
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
- Download Datasheet
Description
Hioki LCR Meters and Impedance Analyzers range from DC to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9202 Test Fixture supports high frequency testing up to 600 MHz when paired with the IM7580 Impedance Analyzer series, and delivers a unique staging mechanism that lets you validate components and devices in various shapes and sizes, including RFID and NFC chips.
Key Features
- Test fixture for IMPEDANCE ANALYZER IM7580 Series
- High frequency testing up to 600 MHz
- Test the impedance of devices in a diverse range of shapes and sizes, including leaded/though-hole devices, SMD, and RFID and NFC chips
- Aids in properly identifying self-resonance frequency (SRF) and equivalent series resistance (ESR) to validate component performance
