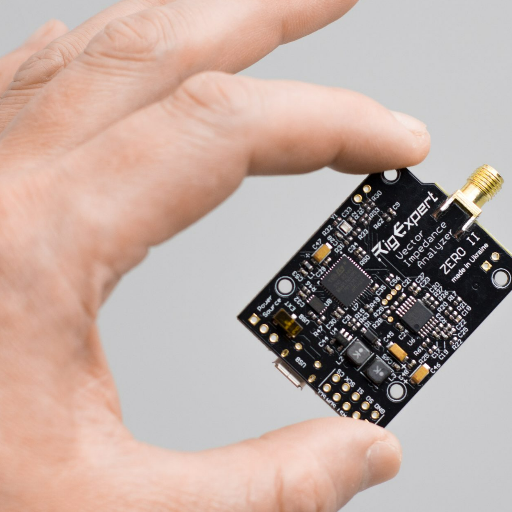

RigExpert Zero II
RigEXperts 1 GHz VNA is ideal for the radio enthusiast as an already built kit to install in an enclosure of their choosing.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description

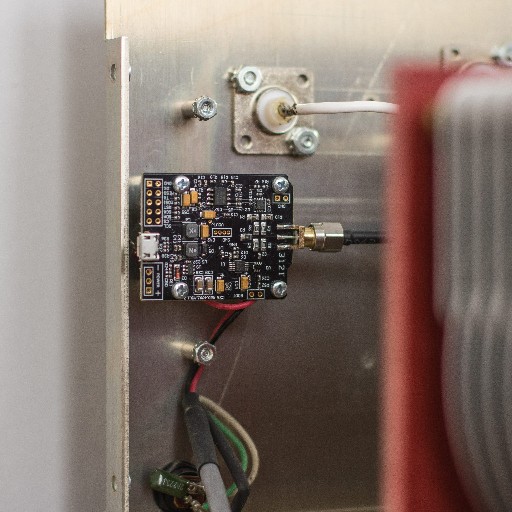

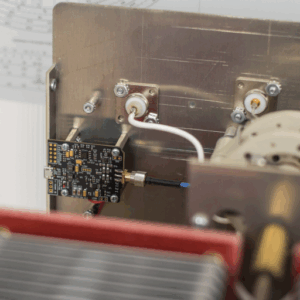

1 GHz VNA for embedded applications & perfect device for embedded installation. It used, for example, antenna tuners, transceivers, or power amplifiers as the core of the load-matching circuit. For use without additional settings, take advantage of our free Antscope software for PC or Android. To start measuring, all you need is a PC (tablet or smartphone) with Antscope installed and a USB cable to connect the VNA Zero II.
ZERO II is also useful for:
manufacturers of power equipment HAM radio direction;
developers and manufacturers of devices requiring long-distance packet data transmission using different protocols.
It is capable on:
measures up to 1GHz– Instantly returns R, X, SWR & Return Loss values;
comes factory calibrated;
has USB, UART, I2C, and SPI interfaces use.
Specifications:
Frequency range: 0.1 to 1000 MHz
Frequency setting time: 20 ms
Return values: Resistance, Reactance (signed), SWR, Return Loss
Output connector: SMA
Output power: -10 dBm
Power: USB or from 3V to 48V through Power port
Operating temperature: 0…40 °C (32…104 °F)
Interface: USB, I2C, SPI, UART
Dimensions: 30 x 40 x 4 mm (1 x 2 x 0.2 inches)
Weight: 30 grams (3 Oz)
Warranty: 1 year
Note: Specifications are subject to change without notice, Ðœade in Ukraine
