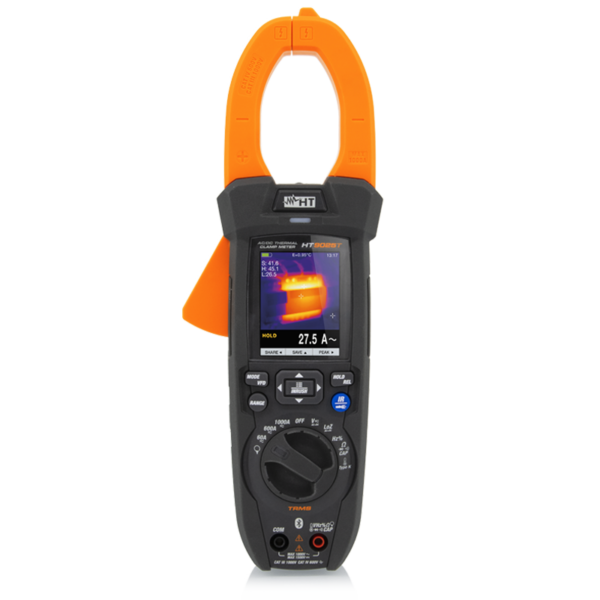

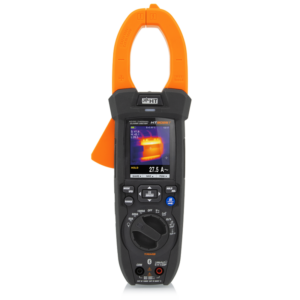

HT INTRUMENTS HT9025T – INFRARED CAMERA
Measure more. See more. Do more.
The HT9025T Clamp Meter with Thermal Imaging combines TRMS electrical measurement and infrared inspection in one tool—helping you detect faults faster and safer. It measures up to 1000A AC/DC and 1500V DC, while its 120×120 thermal camera reveals hidden overheating issues in real time.
With Bluetooth data transfer, multi-parameter testing, and rugged CAT IV safety, it’s built for professionals in electrical maintenance and industrial diagnostics.
HT9025T — Diagnose instantly. Prevent failure.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
- Product Specifications
Description
AC/DC TRMS 1000A clamp meter with integrated thermal imager 120 x 120 pxl
HT9025T has been designed to measure AC/DC current up to 1000A, DC voltage up to 1500V and AC voltage up to 1000V in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/EN61010-1. The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. HT9025T also measures Resistance, Frequency, Capacitance and Temperature with K-type probe and infrared temperature with built-in thermal camera 120 x 120 pxl. The Bluetooth connection allows for the transfer of the saved snapshots by means of the dedicated App HTMercury.
| TRMS | |
| Current measuring range | 1000A |
| AC/DC current | AC+DC |
| AC/DC voltage | 1000VAC/1500VDC |
| IR Resolution | 120 x 120 pxl |
| Leakage current with optional clamp meter | External pliers |
| Frequency | |
| Resistance and continuity test with buzzer | |
| Capacity | |
| Diode test | |
| Duty Cycle (%) | |
| Temperature with K-type probe | |
| AC/DC current | |
| Inrush current measurement (INRUSH) | |
| Measurement category | |
| Maximum diameter for clamp | 40mm |
| Measuring counts | 6000 |
| Backlight | |
| Bargraph | |
| Autorange | |
| Auto power off | |
| Detection of AC voltage without contact | |
| Data HOLD function | |
| MIN/MAX function | |
| Relative measurement | |
| Colour LCD display | |
| Datalogger and Graph | |
| Memory for data saving | |
| Power supply | LI-ION battery |
| Size (LxWx H) (mm) | 280x100x50 |
| Weight in grams (batteries included) | 505 |
- EMC 2014/30/EU
- EMC: IEC/EN61326
- IEC/EN61010-1
