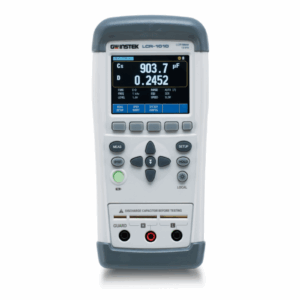

LCR-1000 Handheld LCR Meter
Features
- 2.8” TFT Touch LCD
- 50,000 Counts Resolution on Primary and Secondary Display
- 0.2% Basic Accuracy
- Six or Eight Selectable Test Frequencies Depends on Model
- 15 Kinds Measurement Combinations Available
- Test Level Selectable : AC 0.3V/0.7V/1Vrms and DC +/- 1V
- Selectable measurement Speed : Fast 10 Times/s, Slow 2.5 Times/s
- Auto LCR Mode for Automatic Component Type Identification and measurement
- Data Hold
- USB (Virtual COM) Interface for Remote Communication
- Software for Datalogging is Available
- Description
Description

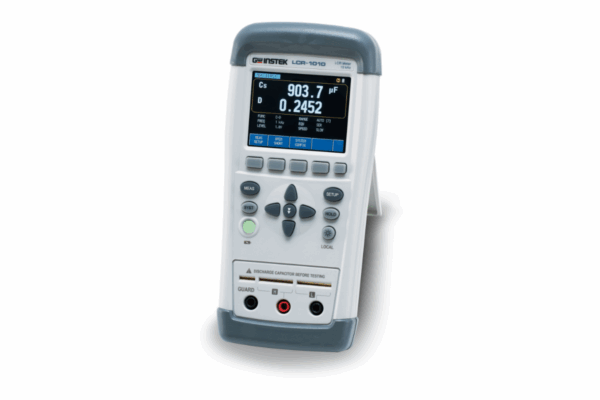

GW Instek’s LCR-1000 Series: Handheld LCR Meter with High Accuracy and Versatility
GW Instek introduces the LCR-1000 series, a handheld LCR meter featuring a 0.2% basic accuracy and automatic real-time testing. The device incorporates a TFT-LCD display with both button and touch screen controls, making it user-friendly and suitable for precision tests in maintenance, production, education, and quality assurance.
The series includes two models:
LCR-1100: Test frequency up to 100 kHz.
LCR-1010: Test frequency up to 10 kHz.
Key features:
- Selectable test voltages: 0.3/0.7/1.0 Vrms.
- Measurement parameters: Capacitance, inductance, resistance, reactance, impedance, quality factor, loss factor, phase, and DC resistance.
- Display counts: 50,000 for main and auxiliary parameters.
- Measurement modes: 2-wire and 5-wire.
- Functions: Comparison, data retention, and equivalent circuit (series/parallel) options.
- Connectivity includes USB-HID and USB-VCOM interfaces, with free PC software and SCPI-compatible remote control commands for data acquisition and customization.
