Mechanics-Human Arm Model
Mechanical model that simulates the muscles and motion of an actual human arm. To activate the motion students pull on the cord.
WHAT’S INCLUDED
See the Product Description for this item’s included accessories.
WHAT TO CONSIDER
See the Buying Guide for this item’s required, recommended, and additional accessories.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description

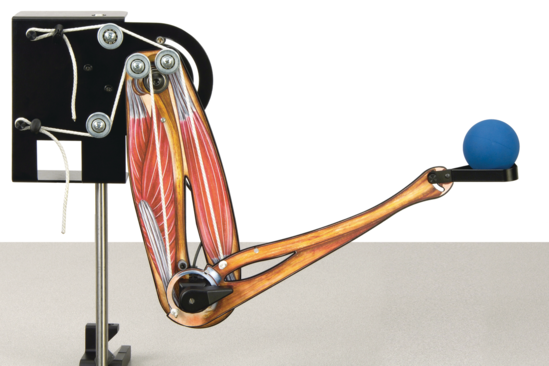

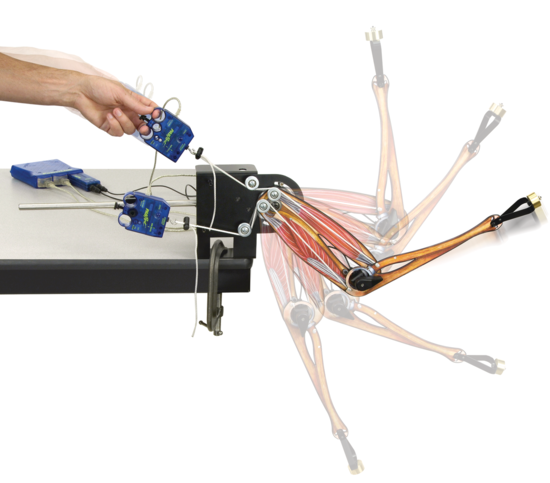

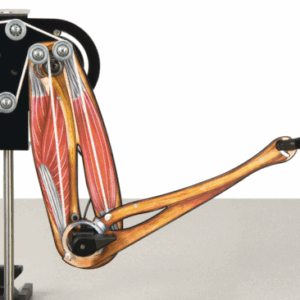

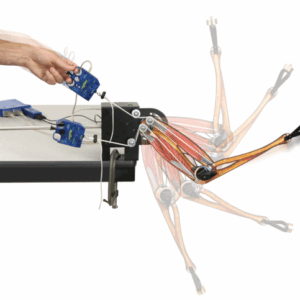

The Human Arm Model simulates the muscles and motion of an actual human arm. To activate the arm motion, students pull on the cord with a Force Sensor. Changes in position are measured at the shoulder and elbow using the two built-in potentiometers plugged into one Angle Sensor (PS-2139), included with PS-2611. From this information, the torque applied when lifting an object can be determined. Also, students can evaluate the work done by the arm in throwing a ball and the resulting kinetic energy delivered to the ball.
The Arm can perform many types of motion such as extending and lifting an object, curling, or throwing a ball overhand. Different arm muscles are activated depending on which pulleys are selected. Static force measurements can also be made to see how the muscle tension changes at various arm positions.
Features
Working Model of the Human Arm
Associate Triceps/Biceps Muscle Action with Arm Motion
Measure Torque Resulting from Lifting Weights
Actually Throws a Ball
What’s Included
1x Human Arm Model
1x Arm
1x Angle Sensor PS-2139
1x Angle Sensor
1x Removable Mass
1x Cord & Cord Locks
1x Mounting Bracket with Rod
1x Force Sensor Mounting Rod
1x Rubber Ball
