MECHANICS/ Impulse Experiment, EX-5509B
The complete solution for experimentally measuring impulse on a cart in two ways.
WHAT’S INCLUDED
- 1x Force Sensor Track Bracket (ME-6622)
- 2x PAScar Cart Mass (set of 2) (ME-6757A)
- 1x Smart Cart (Red) (ME-1240)
- 2x Dynamics Track End Stop (2 Pack) (ME-8971)
- 2x Dynamics Track Feet (Pair) (ME-8972)
- 1x 1.2 m Aluminum Dynamics Track (ME-9493)
WHAT TO CONSIDER
See the Buying Guide for this item’s required, recommended, and additional accessories.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
In this experiment, the impulse on a cart is determined in two ways: by measuring the change in velocity and by finding the area under a Force vs. Time curve.

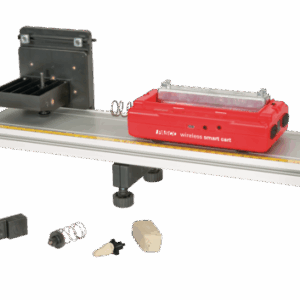

A Smart Cart runs down a slightly inclined track with its Force Sensor equipped with either a clay bumper, spring bumper, or magnetic bumper. The cart collides with the endstop. To determine the change in momentum (impulse), the velocities before and after the collision are recorded using the Smart Cartâs encoder. To confirm the impulse, the force vs. time is plotted and the impulse is determined by finding the area under the curve.
PASCO Advantage: Since the PASCO Smart Cart is capable of measuring both force and velocity, it eliminates the need for any external sensor. No interface is required. No wires interfere with the motion because the Smart Cart transmits the data over Bluetooth 4.0.
Features
- Designed for use with the Smart Cart
Concepts
- Impulse: change in momentum
- Impulse: area under a Force vs. Time curve
- Different shaped force curves for elastic and inelastic collisions
