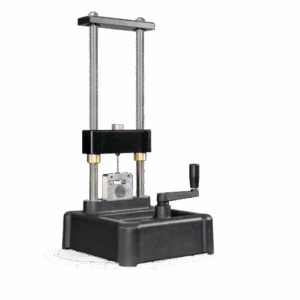

Mechanics- Materials Testing Machine
This is the assembly-only version; measures force and displacement for various materials as the materials are stretched, compressed, sheared, or bent.
WHAT’S INCLUDED
1x Machine
1x Compliance calibration rod
1x Safety shields
WHAT TO CONSIDER
See the Buying Guide for this item’s required, recommended, and additional accessories.
- Description
Description
Measure force and displacement for various materials as they are stretched, compressed, sheared, or bent. Investigate material properties including Young’s Modulus, Tensile Strength, Yield Strength, Ductility and Modulus of Resilience.

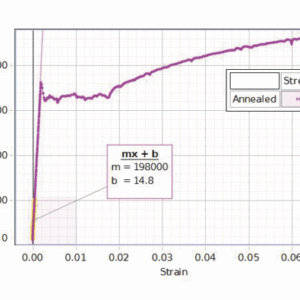

The Materials Testing Machine measures force with a 7100 N load cell and displacement with an optical encoder. It runs on PASCO Capstone software, which has a built-in compliance calibration wizard and has all the tools to record and display stress vs. strain, apply linear fits to find Young’s Modulus, and to record and play back webcam movies of the breaking samples, synced to the data.
Workbooks include all instructions needed to perform the experiment:
Introduction and theory
Setup instructions
Detailed analysis and summary questions
Features
Inexpensive samples make it possible for each student to experience it firsthand
Tabletop design saves lab space
Easy to set up and calibrate
Minimal maintenance
Inexpensive replacement coupons and samples
Sync real-time video to data and replay in slow motion
Manual hand crank to help students feel material strengths
Utilizes PASCO Capstone software
How It Works
The Materials Testing Machine has a built-in load cell (strain gauge transducer) capable of measuring up to 7100 newtons (N) of force (1600 pounds), and an optical encoder module that measures displacement of the load bar. A crank-and-gear system raises or lowers the load bar on two leadscrews (also known as power screws or translation screws). Force data from the load cell and displacement data from the encoder module can be recorded, displayed, and analyzed by a PASCO Interface with PASCO Data Acquisition Software.
The sensor cable from the Materials Testing Assembly connects to a PASPORT input port.

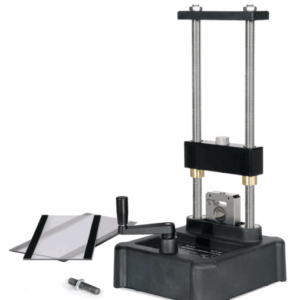

The Materials Testing Assembly includes a calibration rod and nut, a load bar round nut, and a pair of safety shields with Velcro® hook material.
What’s Included
1x Machine
1x Compliance calibration rod
1x Safety shields
