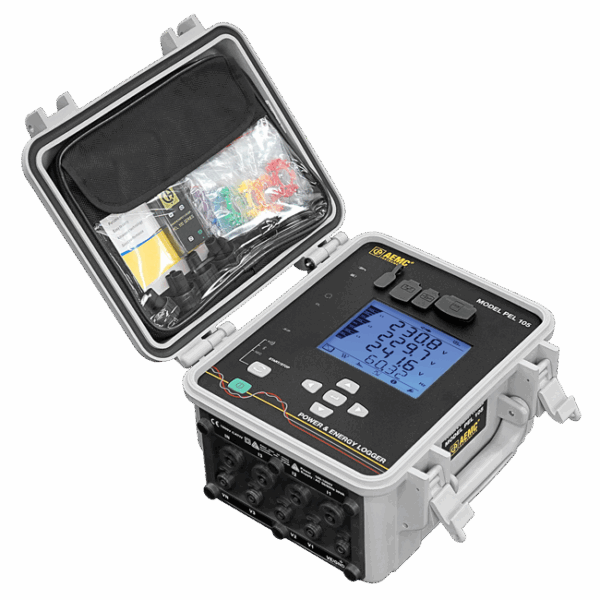

AEMC PEL 105 Power & Energy Logger
AEMC’s Model PEL 105 is a simple to use, power and energy data logger that monitors both traditional and renewable energy sources. It monitors and records True RMS voltage and current, power, energy, cost and harmonics locally or from anywhere in the world. The PEL 105 is built into a waterproof case with an IP67 rating designed for outdoor use and is ideal for pole mounting and can be powered from a phase being monitored. This product is perfect for electricians, engineers and contractors doing work in the areas of building and system monitoring and upgrades, including compliance to article 220.87 of the NEC, as well as overall energy audits and incoming power monitoring. It is available with an Android™ App to configure, view and capture data wirelessly. Bluetooth and Wi-Fi wireless communication provides the operator with the ability to work from a safe distance away from dangerous voltages and currents without the need to wear PPE gear.
- Description
Description
Power & Energy Logger Model PEL 105
AEMC’s Model PEL 105 is a simple to use, power and energy data logger that monitors both traditional and renewable energy sources. It monitors and records True RMS voltage and current, power, energy, cost and harmonics locally or from anywhere in the world. The PEL 105 is built into a waterproof case with an IP67 rating designed for outdoor use and is ideal for pole mounting and can be powered from a phase being monitored. This product is perfect for electricians, engineers and contractors doing work in the areas of building and system monitoring and upgrades, including compliance to article 220.87 of the NEC, as well as overall energy audits and incoming power monitoring. It is available with an Android™ App to configure, view and capture data wirelessly. Bluetooth and Wi-Fi wireless communication provides the operator with the ability to work from a safe distance away from dangerous voltages and currents.
FEATURES
• Simple-to-use, single-, dual- (split-phase) and
three-phase (Y, ∆) power & energy loggers
• Designed to work in 1000 V CAT III and
600 V CAT IV environments
• Supports 17 different network connections
• Power measurements: kVA, kW and kvar
• Energy measurements: kVAh, kWh (source, load)
and kvarh (four quadrant indication)
• Includes DataView®
software for configuring,
real-time display, analysis and report generation
• 8 GB SD card supplied, can be upgraded up to 32 GB
• USB, LAN, Ethernet, Wi-Fi and Bluetooth®
communication
(Class 1 wireless communication, up to 300 ft away)
• Satisfies the monitoring requirements of NEC Code 220.87
• PEL 105 can be configured from front panel, DataView®
control
panel or the FREE Androidâ„¢
application
• Provides all the necessary functions for power and
energy data logging for (50, 60, 400) Hz and DC
distribution systems
• Automatic recognition of the connected current
sensors and probes
• Powers directly from phase input
• Pole mountable
