NoiseKen Electromagnetic Field Visualization System EPS-02Ev3
- Description
Description
Three-Dimensional Indication (Time, Frequency, Amplitude) Simplifies EMC/EMI Debugging
EPS is a EMC/EMI debugging tool enabling designers to rapidly perform pre-measurement, failure point identification, and improvement efficiency confirmation in EMC/EMI countermeasure process of product design.

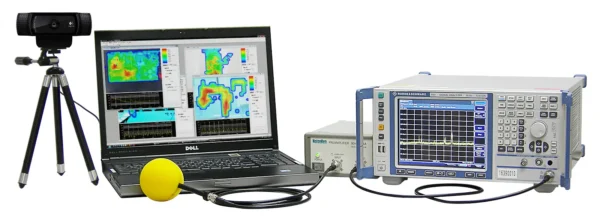

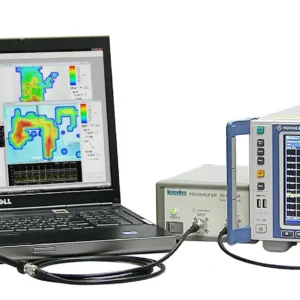

How does it work? The software detects locations of probes by color discrimination through camera’s image sensors*, real time analysis measured signal frequency, shows a heat map by overlapping electromagnetic field strength and real images of measured objects.
*location detection method based on Patent Application 2007-223275 by National University Corporation Kanazawa University and Patent 5205547 by Noise Laboratory Co,. Ltd.
Features
- A real-time diagnostic tool supports EMC/EMI debugging.
- Fast visualize EMC/EMI problems.
- Enables easy comparison of countermeasures before and after.
- Capable of measurement from entire products to single components.
- Factor-editor function provides correction of antenna characteristics, cable loss and preamplifier.
- User friendly compact design.
- Customer supplied spectrum and probes acceptable (Please consult)
