NoiseKen Fast transient / burst simulator FNS-AX4-A20 / B63
- Description
Description
It is compact and equipped with new functions to make EMC testing easier.
It is a tester that evaluates the resistance of electronic devices by simulating high-frequency noise that rises quickly due to discharge between contacts of switching devices and arc discharge generated from electronic motors.
Features
- IEC 61000-4-4 Ed.3 standard compliance.
- Pre-check function equipped, making. inspection before testing easier.
- Normal mode test support. for testing for real field troubles. (option)
- Utilize an outlet box that simplifies EUT connection. (option)
- Compared with conventional products, the size has become compact. (Approximately 67% by volume)
- Easy to understand Panel display reduces mistakes in connecting power cables.
- Windows compatible software control. (option)
- Next calibration date notification. (Windows software only)
- LCD screen with multi-language support and enhanced operability.
- Maximum output voltage of 5 kV and maximum pulse frequency of 2 MHz allowing to test above the standard test level.
- CDN capacity is increased to single phase type AC 240 V 20 A, single and three phase type to AC 600 V 63 A, supporting a wider range of EUTs.
- Large capacity CDN (100 A or 150 A) option available for Injection test on various EUTs.
- Using coupling clamps and EMS probe kit, allows to test signal lines and evaluate noise immunity on PCBs. (option)
Related Products

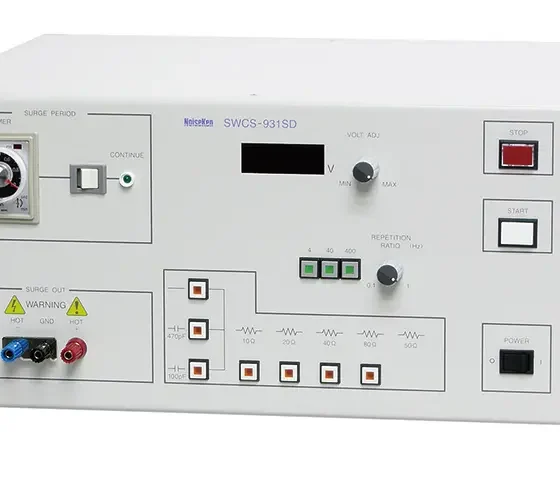

NoiseKen High Frequency Surge Test (Burst Waveform) SWCS-931SD
A damped oscillatory wave simulator simulates the fast-repeating, high-frequency noise that occurs...

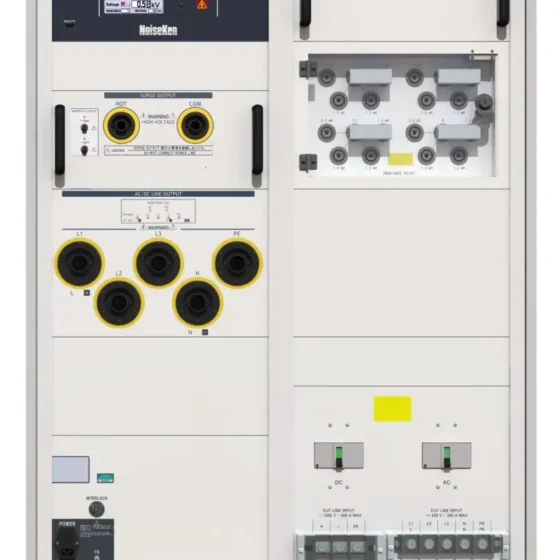

NoiseKen Lightning Surge Simulator (AC600V/200A,DC1000V/200A)
