Test noise resistance during product development!

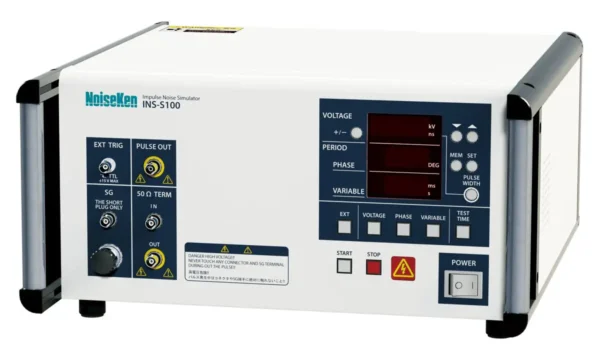

Pulse output settings from 50V. Test noise resistance of circuit boards and low voltage components. The impulse noise simulator tests the resistance of electronic equipment by simulating quick rise-time high-frequency noise due to discharge between the contacts of switching devices and arc discharge generated from electronic motors. The impulse noise simulator INS-S100 can output pulses from 50V, allowing to evaluate the noise resistance of circuit boards and low voltage components during product development, and during analysis of malfunctions occurred in the market.
Features
● Easy testing of circuit boards’ noise resistance due to the pulse output voltage from 50V.
● Easy noise immunity assessment due to possibility to change the output voltage during pulse output.
● “TEST TIME” setting available.
● Lightweight and compact due to no decoupling network (CDN) included.
● Test the noise resistance of signal lines using optional coupling adapters.
● Test the noise resistance of circuit boards using optional radiation probes.
| Parameter | INS-S100 | INS-S220 | INS-S420 |
|---|---|---|---|
| Pulse output voltage | 0. 05kV ～ 1. 00kV | 0. 50kV ～ 2. 00kV | 0. 50kV ～ 4. 00kV |
| Pulse width | 50ns ～ 1000ns | 100ns ～ 1000ns ※output voltage：～ 0. 99kV 50ns ～ 1000ns ※output voltage：1. 00kV ～ |
50ns ～ 1000ns |
| Repetition cycle | 10ms ～ 999ms | 1ms ～ 999ms ※output voltage：～ 0. 99kV 10ms ～ 999ms ※output voltage：1. 00kV ～ |
10ms ～ 999ms |
| Rise time | ＜ 3ns ※ when 50Ω terminated |
＜ 3ns ※ when 50Ω terminated |
＜ 3ns ※ when 50Ω terminated |
| Decoupling network (CDN) | none | equipped | equipped |
