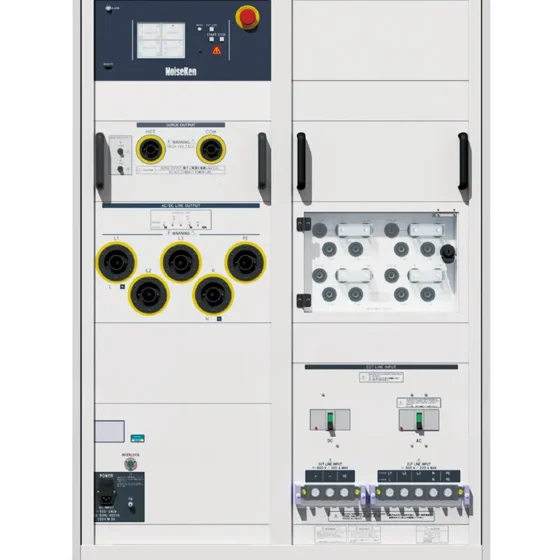

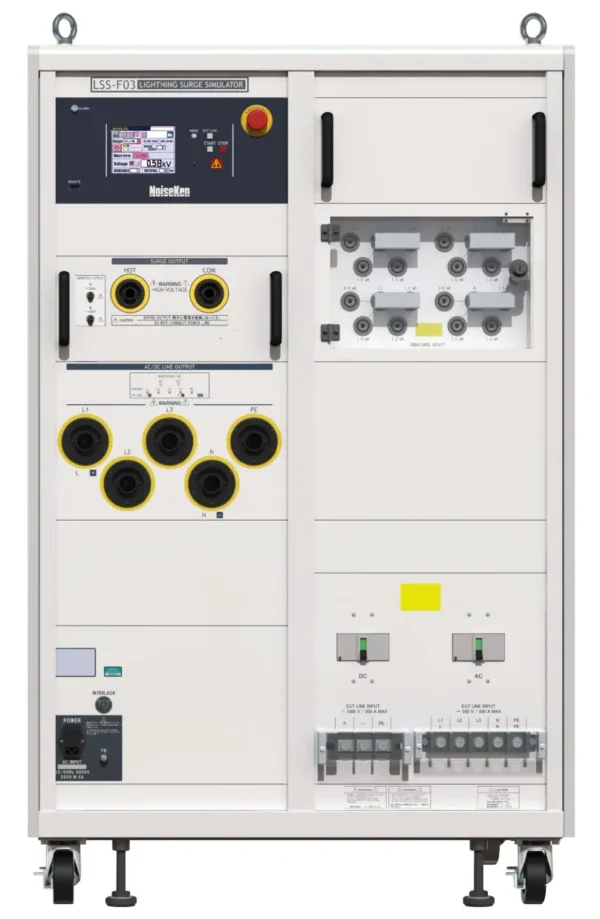

Shop - NoiseKen Lightning Surge Simulator (AC600V/200A,DC1000V/200A)

• Test equipment compliant with IEC 61000-4-5 Ed.3 standard
• Built-in coupling-decoupling circuit network of AC600V/200A DC1000V/200A.
• Maximum output voltage of 15kV: Can be used in reliability evaluation testing for lightning surge testing, including destructive testing.
• Large LCD screen operation panel: Large LCD panel screen is used in the operation section for improved visibility and operability.
• MPU control for easy continuous testing: Surge output, waveform switching, polarity switching, and sequential operation can be performed automatically.
• Manual and program modes are available: Manual mode for standardized tests and single-shot tests, and program mode for continuous tests under different conditions. Test conditions can be easily set to suit the application.
• Excellent safety functions including interlock
• Equipped with waveform check terminal as standard
• Output waveforms can be checked using your oscilloscope and a BNC cable.
• Isolation transformer required to protect the power supply for EUT is available. (Option)
• Constant switching of decoupling circuit is available to prevent resonance with the power supply.
• AC line detection ON/OFF can be switched according to EUT and test specifications. (DC line detection is not available)

(Additional customization)

• Switchable to a circuit that does not include 18uF in the surge output of IEC61000-4-5 (Edition 2.0 2005).
• Built-in diode for EV relay weld protection on DC line.
• Can evaluate lightning surge immunity when charging EV/PHV vehicles as required by ECE R10-04/05. (CHAdeMO compliant)
• Remote control by control software LSS-F03 RemoteW MODEL:14-00071A is available.
  *Switching between IEC61000-4-5 Ed.2 and Ed.3 and constant switching of decoupling circuit are manual.

This product is a custom specification product. Please contact us for details.
