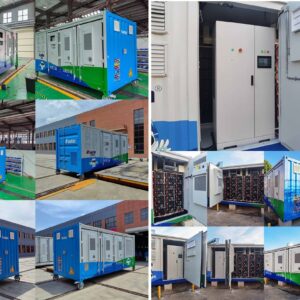

Outdoor Container Battery Energy Storage System (BESS)

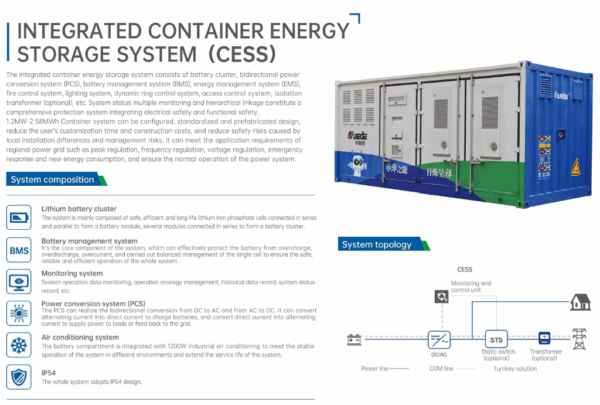

INTEGRATED CONTAINERISED BATTERY ENERGY STORAGE SYSTEM (BESS)
Our team at Electrotest delivers technical expertise and comprehensive, customised solutions for Battery Energy Storage System (BESS) projects, tailored to meet your specific requirements. The integrated container energy storage system consists of battery cluster, bidirectional power conversion system (PCS), battery management system (BMS), energy management system (EMS), fire control system, lighting system, dynamic ring control system, access control system, isolation transformer (optional), etc. System status multiple monitoring and hierarchical linkage constitute a comprehensive protection system integrating electrical safety and functional safety. 1.2MW-2.58MWh Container system can be configured, standardized and prefabricated design, reduce the user’s customization time and construction costs, and reduce safety risks caused by local installation differences and management risks. It can meet the application requirements of regional power grid such as peak regulation, frequency regulation, voltage regulation, emergency response and new energy consumption, and ensure the normal operation of the power system.
- Description
Description
System composition
Lithium battery cluster
The system is mainly composed of safe, efficient and long-life lithium iron phosphate cells connected in series and parallel to form a battery module, several modules connected in series to form a battery cluster.
Battery management system
It’s the core component of the system, which can effectively protect the battery from overcharge, overdischarge, overcurrent, and carried out balanced management of the single cell to ensure the safe, reliable and efficient operation of the whole system.
Monitoring system
System operation data monitoring, operation strategy management, historical data record, system status record, etc.
Power conversion system (PCS)
The PCS can realize the bidirectional conversion from DC to AC and from AC to DC. It can convert alternating current into direct current to charge batteries, and convert direct current into alternating current to supply power to loads or feed back to the grid.
Air conditioning system
The battery compartment is integrated with 1200W industrial air conditioning to meet the stable operation of the system in different environments and extend the service life of the system.
IP54
The whole system adopts IP54 design.
