PDTD68 Partial Discharge diagnostics system
Breakdown Analyzer test set BA100 is the smallest and lightest portable oil test set of its rating evaluating the condition of the transformer insulating fluids. It is a necessary device that helps you to decide whether the transformer oil has to be changed in order to extend the asset life.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description

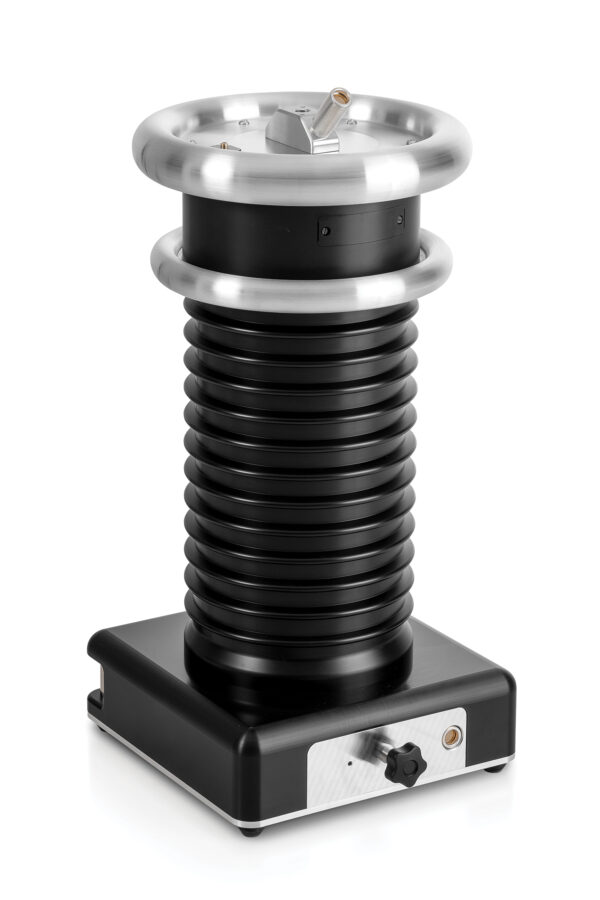

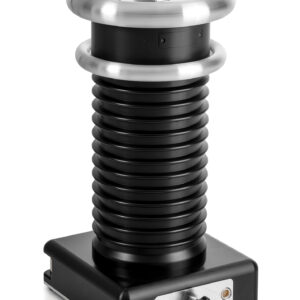

The PDTD68 is an integrated VLF diagnostics system specially designed for the use with HVA VLF test sets. Thanks to its practical design and the fiber optic interface it enables an easy and safe measurement setup, which can be built up very quickly.
A large 22 nF coupling capacitor, a built-in filter device and a newly developed data acquisition unit ensure sensitive and accurate PD measurements.
The PDTD68 is also equipped with a battery supply, which allows use in locations without a permanent power source. It can just as easily be powered via USB-C (PD 3.0).
Get to know the pdtd68
The PDTD68 is an integrated VLF diagnostics system specially designed for the use with HVA VLF test sets. Thanks to its practical design and the fiber optic interface it enables an easy and safe measurement setup, which can be built up very quickly.
A large 22 nF coupling capacitor, a built-in filter device and a newly developed data acquisition unit ensure sensitive and accurate PD measurements.
The PDTD68 is also equipped with a battery supply, which allows use in locations without a permanent power source. It can just as easily be powered via USB-C (PD 3.0).
| Operating voltage (sine wave) | max. 68 kVpeak, 48 kVrms |
|---|---|
| Capacitance – PD coupling capacitor – Integrated PD filter |
22 nF ~ 2 nF |
| Velocity range (v/2) | 10 – 150 m/µs |
| Sample rate | 250 MS/s |
| TD (resolution / accuracy) | 1 x 10-5 / ± 1 x 10-4 |
