PV Checks Pro Plus Kit
Commissioning tester for PV system up to 1500V / 40A. Pricing is per day and excludes GST, courier and insurance.
- Description
- Download Datasheet
Description

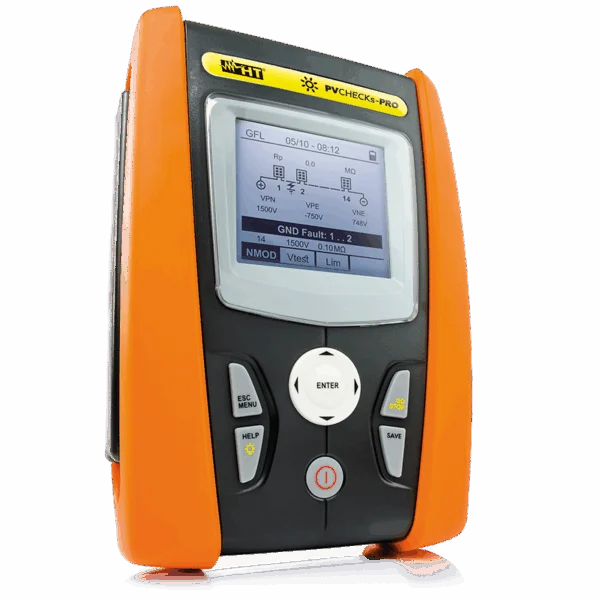

PVCHECKs-PRO
DEMO UNIT AVAILABLE
Multifunction commissioning tester up to 1500V / 40A capable of taking the following measurements:
• Insulation measurement on PV modules/strings/fields up to 1500VDC (with PI and DAR calculation)
• Open circuit voltage Voc up to 1500V in accordance with IEC/EN62446
• Short circuit current Isc up to 40A in accordance with IEC/EN62446
• Continuity of protective conductors with 200mA
• Polarity
• GFL function for fault finding on strings and PV modules
• Tests on single-facial and bi-facial modules
PVCHECKs-PRO is a commissioning tester designed to take all safety measurements and verifications of PV installations in accordance with IEC/EN62446. By a single GO-key stroke PVCHECKs-PRO performs all commissioning tests. Thanks to the seamless mode, PVCHECKs-PRO is able to test in sequence all strings of a combiner box by a single GO-key stroke. Finally, the GFL – Ground Fault Locator detects the precise position of the lack of insulation, speeding the troubleshooting.
