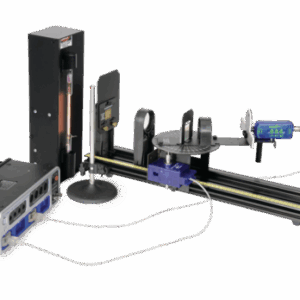

QUANTUM/ Atomic Spectra Experiment, EX-5546B
The complete solution for measuring the wavelengths of the discrete lines of the atomic spectra of various gases using a grating spectrophotometer.
WHAT’S INCLUDED
- 1x Educational Spectrophotometer Accessory Kit (OS-8537)
- 1x Optics Benches (60 cm) (OS-8541)
- 1x Aperture Bracket (OS-8534A)
- 1x PASPORT High Sensitivity Light Sensor (PS-2176)
- 1x PASPORT Rotary Motion Sensor (PS-2120A)
- 2x Round Base with Rod (ME-8270)
- 1x Spectral Tube Power Supply and Mount (SE-9460)
- 1x Spectral Tube (Hydrogen) (SE-9461)
- 1x Spectral Tube (Helium) (SE-9462)
- 1x Spectral Tube (Mercury) (SE-9466)
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
The wavelengths of the discrete lines of the atomic spectra of various gases are measured using a grating spectrophotometer.
The atomic spectra of hydrogen, helium, and mercury are scanned by hand using a grating spectrophotometer, which measures relative light intensity as a function of angle. From the resulting graph, the wavelengths of the spectral lines are determined by measuring the angle from the central maximum to each line. First and second order lines are examined.
The wavelengths of the spectral lines are compared to the accepted values and, in the case of hydrogen, the electron orbit transitions corresponding to the lines are identified.
PASCO Advantage: The open construction of the spectrophotometer allows the entire spectrum to be seen, while the intensity vs. angle is graphed in real time.
Designed for use with any of the following
- 850 Universal Interface
- 550 Universal Interface
- Any PASPORT interface with 2 ports
Concepts
- Hydrogen balmer series
- Helium spectrum
- Mercury doublet
