Red Phase 590G-V2
Performing field test measurements of Current and Potential Transformers has been made far simpler with the Model 590J-V2.
This full featured product combines all of the metering CT test abilities of the popular 590G-V2 model with the additional advantage of also being able to perform both protection CT excitation tests as well as burden based inductive PT tests.
This full featured CT and PT test instrument lowers testing costs by being simple, fool-proof and fast.
It’s capabilities allow utility personnel and test technicians to pursue the very important task of testing field based instrument transformers for measurement losses, faults or tampering.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
The 590J-V2 eliminates the need for additional bulky accessories
usually required to perform various tests on different types of
equipment, saving the operator valuable time and money.

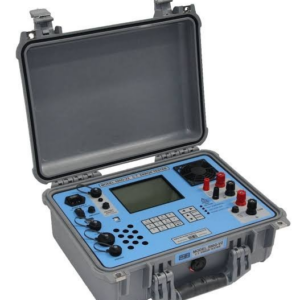

Light weight and portable, the 590J-V2 is housed in a ruggedized
plastic case and is supplied with the necessary test cables and
attachment accessories. It is further packaged in a foam lined
transit case for safe transport.
It features the following offline test capabilities:
– Burden based CT and PT ratio and phase error measurements
 to an accuracy of 0.02%
– Excitation measurements of Protection Class CTs
– Optional Live CT test capability with 590F accessory
– CT and PT secondary winding resistance, PT primary included
– CT 1.6 kHz Admittance test
– Simulated Full Load inductive PT testing on up to 2 windings with
  or without Junction box
– CT and PT Burden test
– CT and PT polarity check
– Batch testing of metering CTs
– No name plate CT Class Estimation
– Record download to USB Flash or optionally via Bluetooth to an Android tablet or phone.
