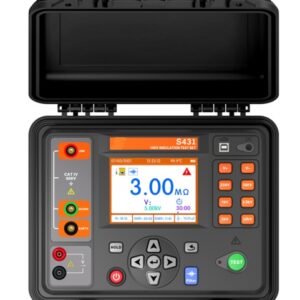

Shop - Rental: HV Diagnostix S431 10KV Insulation Test Set (per day pricing)

Description

The Digital 10kv Insulation Tester Model S431 is the latest 10kV insulation tester developed by Eaglotest. Designed for the testing and maintenance of high voltage electrical equipment. Include features such as noise filtering/rejection, Dielectric Absorption Ratio (DAR), Polarization Index, and Dielectric Discharge and step voltage test. The unit measures insulation resistance from 0.01MOhms to 10 tera-ohms, current from 0.01nA to 1000.0 uA, and capacitance from 0.2 microfarads to 100 microfarads. The unit has test voltages in 10V steps from 100 V to 2.5 kV; from 2.5 kV to 10kV, the step increments alternate between 20V and 30V. Compact and lightweight, the S431 insulation resistance testers feature an industrial case design, and with the lid closed, they have a shockproof and weatherproof protection rating to safeguard against dust and moisture ingress.
