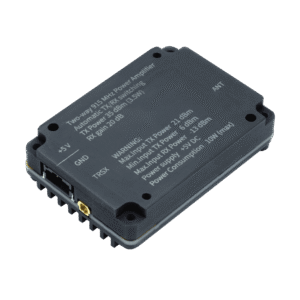

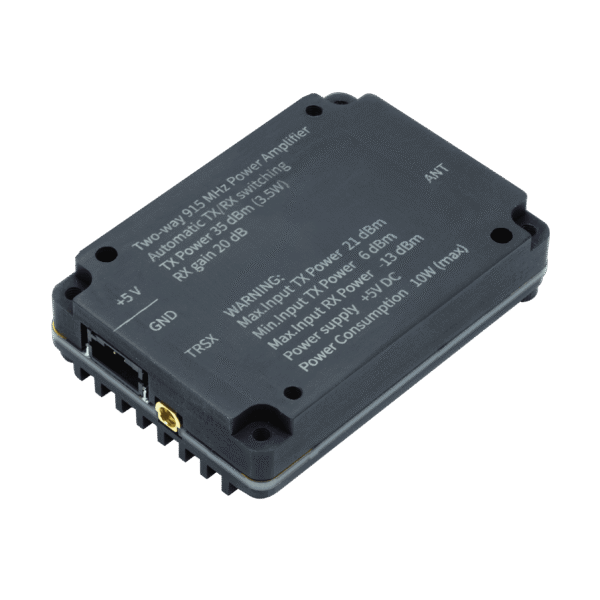

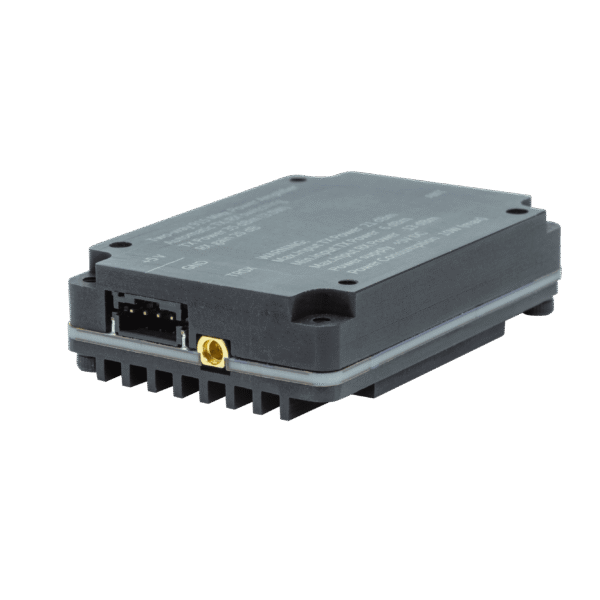

RigExpert 915MPA Bi-directional Power Amplifier
Strong fit for 915 MHz ISM, UAV, SDR, and IoT projects
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
- Download Datasheet
Description
Bidirectional ISM band (915MHz) amplifier, designed for low voltage application.
Provides around 20dB RX gain for small signals in passband and 15dB for TX.
The output power +36dBm in Pulse mode can be reached and +35dBm in CW mode.
50 Ohm matched.
VOX based TX/RX switching. VOX level can be adjusted by replacing resistors
Applications
- TX/RX Amplifier for UAV Systems
- SDR
- HAM Radio
- loT
- Test & Measurement
