RigExpert AA-2000 2 GHz cable analyser
Original price was: $2,095.00.$1,985.00Current price is: $1,985.00.
Customers outside of New Zealand, such as Australian and Pacific Islands, to avoid paying GST, please call our Australian or New Zealand numbers and we will arrange the sale.
AUS:+61 2 913 96 981 NZ: +64 9 448 2600
Looking for a cost effective antenna analyzer? Then look no further as the RigExpert offers that and more.
The Rig Expert AA-2000 is the most powerful cost effective cable analyses on the market. Packed with features that fits in the palm of your hand and at an affordable price.
- Description
Description
Frequency range: 0.1 to 2000 MHz
Frequency entry: 1 kHz resolution
Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600-Ohm systems
SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes
R and X range: 0…2000, -2000…2000
Display modes: SWR, return loss, R, X, Z, L, C, Magnitude, and Phase Angle at a single frequency, SWR chart (100 points). SWR chart at fixed HAM bands by IARU Regions (100 points), Multé mode, Cable tools (Velocity factor measures, Cable length measurer, Stub tuner, Cable loss check), TDR
Optional open-short-load calibration in SWR, R, X, or Smith/polar chart graph modes.
RF output:
– Connector type: N
– Output signal shape: square, 0.1 to 200 MHz. For higher frequencies, harmonics of the main signal are used.
– Output power: -10 dBm (at 50 Ohm load)
Power:
– Three 1.2V, 1800…3000 mAh, Ni-MH batteries, type AA
– Max. 3 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
– When the analyzer is connected to a PC or a DC adapter with a USB socket, it takes power from these sources
Interface:
– 800*480 color BlanView display
– 6×3 keys on the water-proof keypad
– Multilingual menus and help screens ( English / German / French /Spanish / Portuguese / Italian / Japanese / Ukrainian / Russian)
– USB connection to a personal computer
– Bluetooth v. 4.2 (Single-mode, Class B)

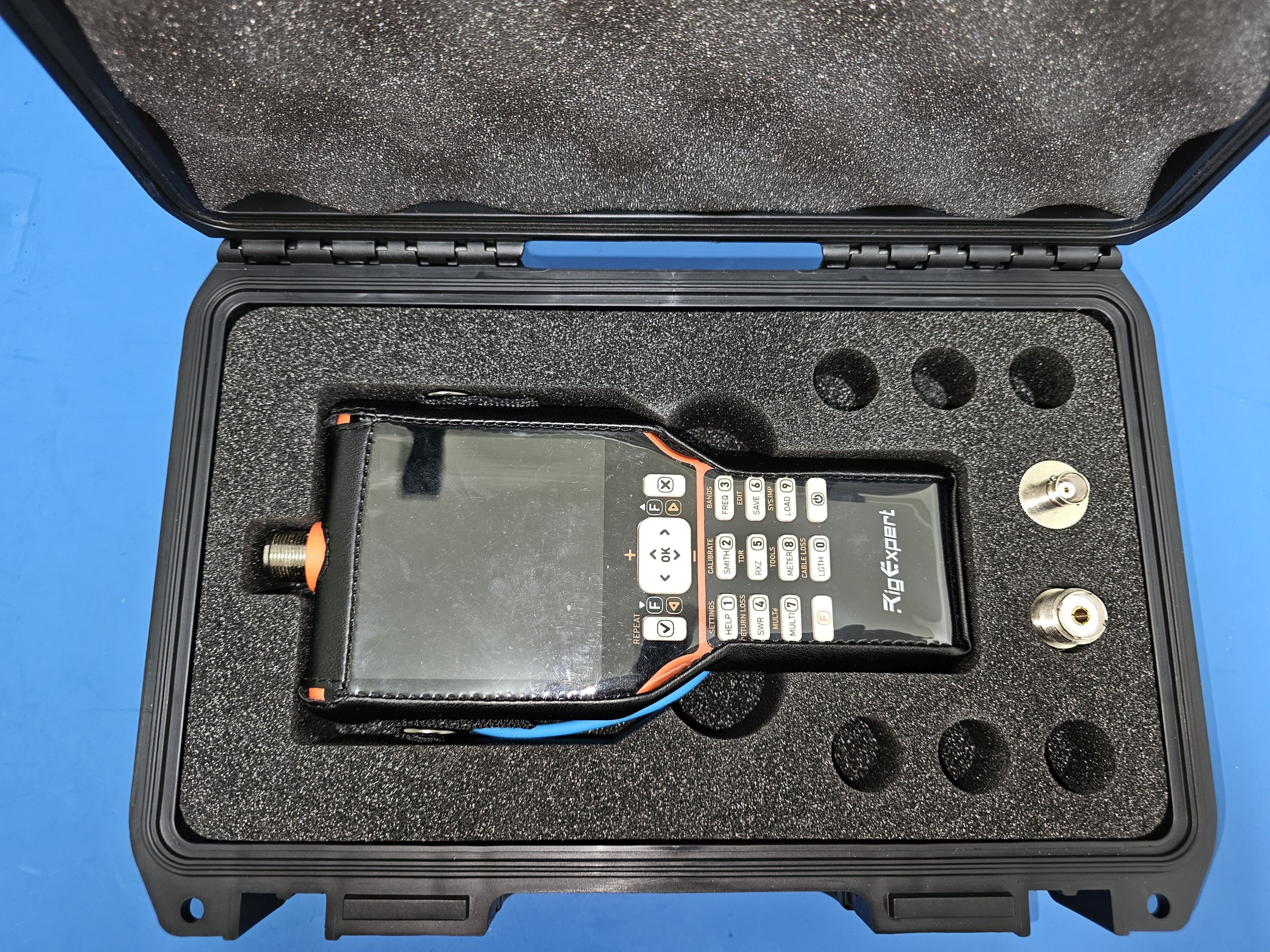

Accessories inside the box: Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter
Dimensions: 23x10x5.5 cm (9x4x2”)
Operating temperature: 0…40 °C (32…104 °F)
Weight: 650g (23 Oz)
Warranty: 2 years RigExpert Care
