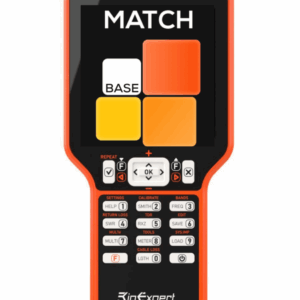

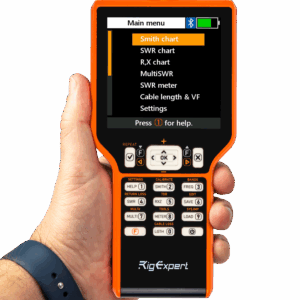

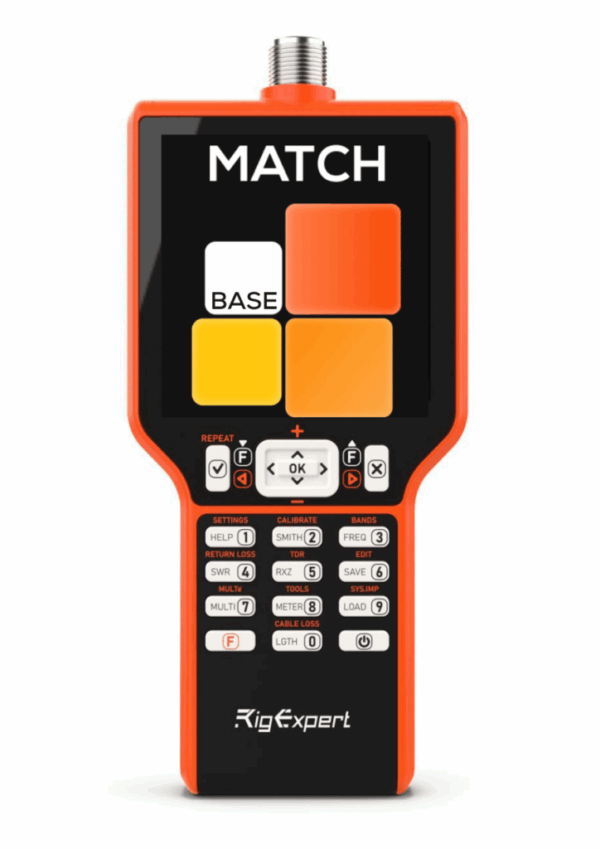

RigExpert Upgradeable MATCH 0.1 to 70MHz Antenna & Cable Analyzer
Original price was: $695.00.$645.00Current price is: $645.00.
The ALL New innovative MATCH from RigExpert is a game changer due to the easy upgrade path that is offered. These upgrades allow for extra features and extension of maximum frequency range.
The entry model is the MATCH Base (0.1 to 70 MHz) and the 230MHZ upgrade is the Advanced (ADV) and the 500MHz upgrade is the Radio Field Engineer (RFE)
Upgrade from Base to ADV – $150 + GST
Upgrade from ADV to RFE – $150 + GST
Upgrade from Base to RFE – $290 +GST
New stock arrives early July
- Description
Description
Specifications:
- Frequency range: 0.1 to 70 MHz and the range can be upgraded to 230 MHz (Advance license) and 500 MHz (RFE license)

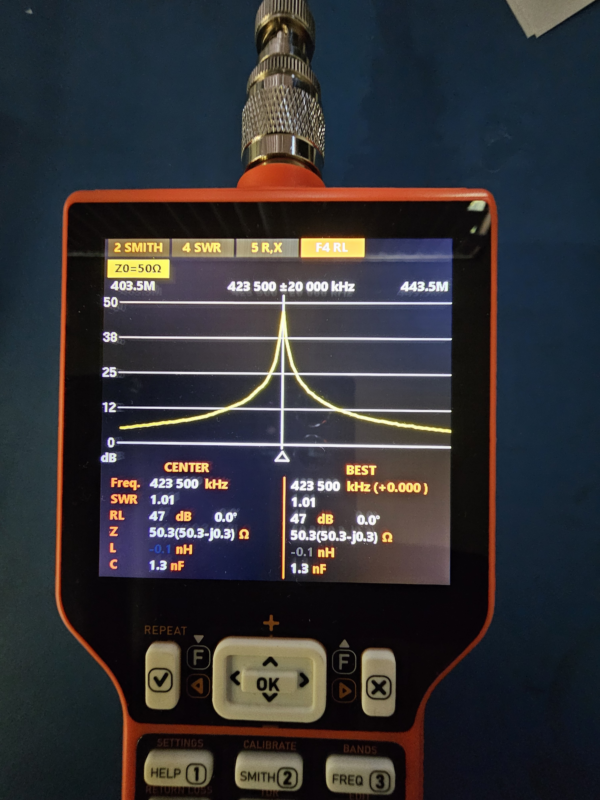

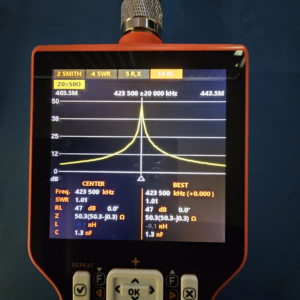

- Operation modes: R, X chart, Return loss chart, Smith chart (Advanced, RFE licenses), SWR at single or multiple frequencies, SWR chart, SWR, return loss, R, X, Z, L, C at single frequency, Time Domain Reflectometry (TDR) chart (RFE License)
- Tools: cable loss and characteristic impedance measurement (Advanced, RFE licenses), Length & velocity factor (Advanced, RFE licenses), OSL calibration (Advanced, RFE licenses), Self-test, Stub tuner (Advanced, RFE licenses)
- User OSL: 10 profiles available (RFE license), Factory OSL
- Display: 480×480 color TFT 4.0” LCD display
- Built in Helper: the push of a button
- Output power: -10 dBm (at 50 Ohm load)
- Output connector: N-type
- Battery (power): One Li-Ion battery ICR18650, 2600mAh
- Run time: 2 hours 40 minutes (continuous measurements)
- Operating temperature: -10…60 °C (14…140 °F)
- PC/Mobile Interfaces: USB Type-C
- Localizations: English, French, German, Italian, Portuguese, Spanish, Ukrainian
- Dimensions: 93 × 207 × 37 mm (3.7 × 8.1 × 1.5 in)
- Weight: 341g (12 oz)
- GTIN-13: 4820185420471
Related Products
RigExpert Stick 500
Customers outside of New Zealand, such as Australian and Pacific Islands, to...
$695.00

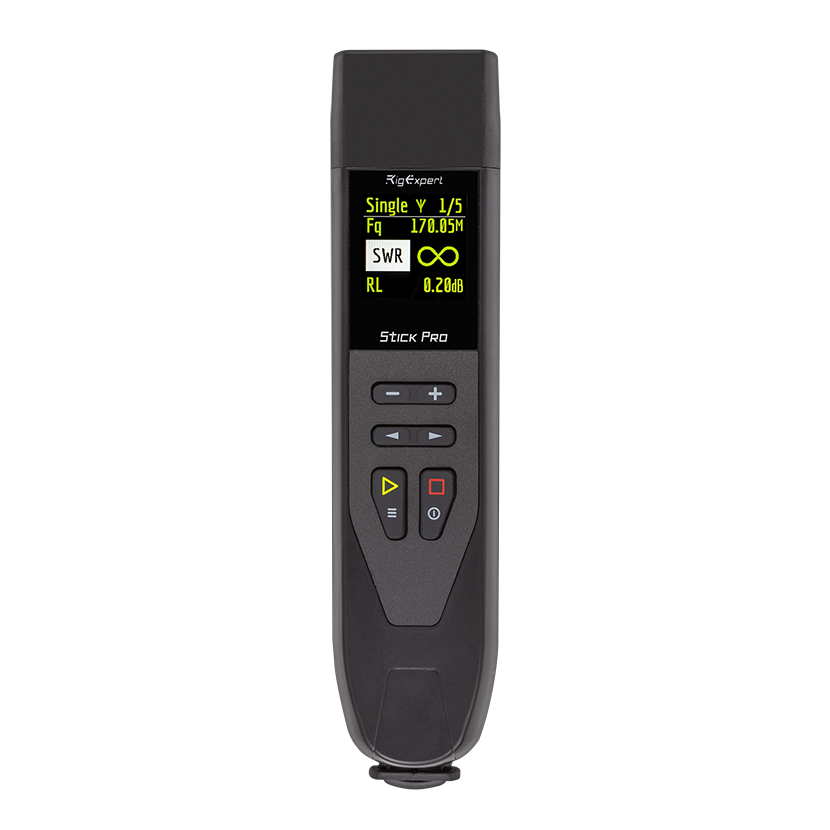

RigExpert Stick Pro
