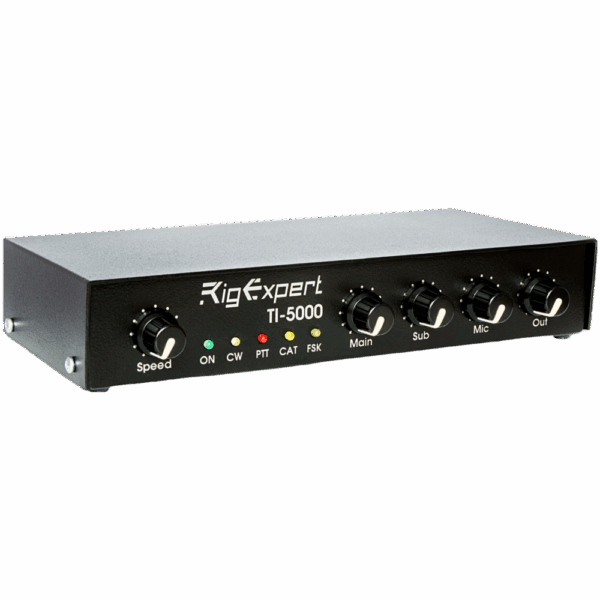

RigExpert TI-5000 Transceiver Audio Interface
Powerful USB transceiver interface based on high quality stereo codec IC, for operating phone, CW and digital modes using personal computer. All in one through a single USB port. Ideal interface for FT8 and WSJT modes!
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
General features
- Â Â CAT (Computer Aided Transceiver) system
- Â Â CW keyer (WinKey)
- Â Â Footswitch input
- Â Â FSK output
- Â Â Microphone input
- Â Â PTT and CW outputs
- Â Â Transceiver audio interface for operating digital modes, voice recording and playback
Computer connection
- Â Â No external power supply needed
- Â Â Powered from the USB port (consuming 100 mA maximum)
- Â Â USB (Universal Serial Bus) connector
Transceiver connection
- Â Â Single 25-pin connector for transceiver cable
- Â Â Various transceiver models supported
Audio interface
- Â Â External microphone input with level control
- Â Â Input/output samplerate: 8 to 48 kHz
- Â Â Insulated from digital nets
- Â Â Maximum input/output amplitude is 1V
- Â Â Recording QSO audio stream
- Â Â Volume levels are adjusted by the front panel potentiometers
CAT serial port
- Â Â Baudrate: 300-115200 baud
- Â Â Electrical compatibility: RS-232, CI-V, TTL or inverted-TTL (Yaesu, Icom, Kenwood, Ten-Tec, Elecraft and JRC transceivers)
PTT/CW outputs
- Â Â CW output: open collector
- Â Â Maximum current is 50 mA
- Â Â PTT output: open collector and TTL-level
FSK output
- Â Â Baudrate: 45-1200 baud
- Â Â Open collector output
System requirements
- Â Â Desktop or laptop computer with USB 1/2/3 compliant port
- Â Â For Windows 7 and previous versions of Windows only FTDI drivers are required
- Â Â MacOS/Linux/Windows 2000/XP/2003/Vista/7/8/10 (32- or 64-bit) operating system
- Â Â No drivers required for systems on Windows 10/MacOS/Linux
Supported software
- Â Â all other soundcard software!
- Â Â MixW 2/3/4
- Â Â MMTTY, MMSSTV
- Â Â WSJT, WSJT-X, WSPR
