ROTATION/ Physical Pendulum Experiment, EX-5518A
The complete solution for determining the period of a physical pendulum. This complete solution is designed for use with PASCO Capstone Software.

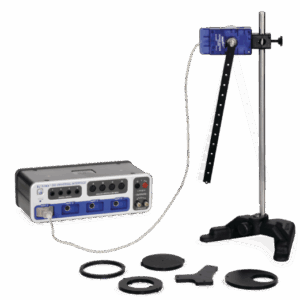

WHAT’S INCLUDED
- 1x Large Rod Base
- 1x 45 cm Stainless Steel Rod
- 1x Physical Pendulum Set
- 1x PASPORT Rotary Motion Sensor
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
In this experiment, the period of a physical pendulum, a narrow bar, is determined as a function of the distance of the pivot from the center of mass. A computer model of the system is developed, which allows the student to vary the physical parameters of the model (gravity, length, c.m. position) to match the data. This makes it possible to obtain values for the physical parameters without direct measurement.
A second experiment verifies the parallel axis theorem. It also uses superposition to find the rotational inertia of a disk with an off axis circular hole.
Concepts
- Parallel Axis Theorem
- Period of a physical pendulum
- Computer modeling of a system
- Rotational inertia
