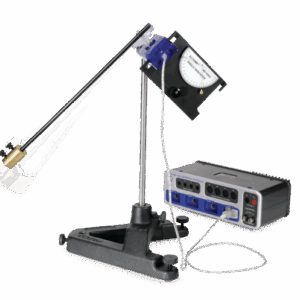

ROTATION/ Variable-g Pendulum Experiment, EX-5519A
The complete solution for exploring the dependence of the period of a simple pendulum on the acceleration due to gravity and on the length and amplitude of the pendulum.
WHAT’S INCLUDED
- 1x Large Rod Base
- 1x 45 cm Stainless Steel Rod
- 1x Angle Indicator
- 1x Adjustable Angle Clamp
- 1x Pendulum Accessory
- 1x PASPORT Rotary Motion Sensor
- Description
Description
This experiment explores the dependence of the period of a simple pendulum on the acceleration due to gravity and on the length and amplitude of the pendulum.
A simple rigid pendulum consists of a 35 cm long lightweight aluminum tube with masses at the end, mounted on a Rotary Motion Sensor. The pendulum is constrained to oscillate in a plane tilted at an angle from the vertical. This effectively reduces the acceleration due to gravity because the restoring force is decreased.
PASCO Advantage: The rigid pendulum can be assumed to be a simple pendulum: the actual period is approximately 99% of the period of a simple pendulum of the same length.
Concepts
- Period of a simple pendulum
- Effect of decreasing “g” on the pendulum period
- Large amplitude period
- Shape of displacement, velocity, and acceleration curves for large amplitude
