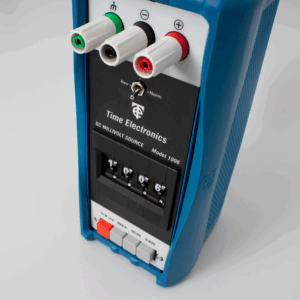

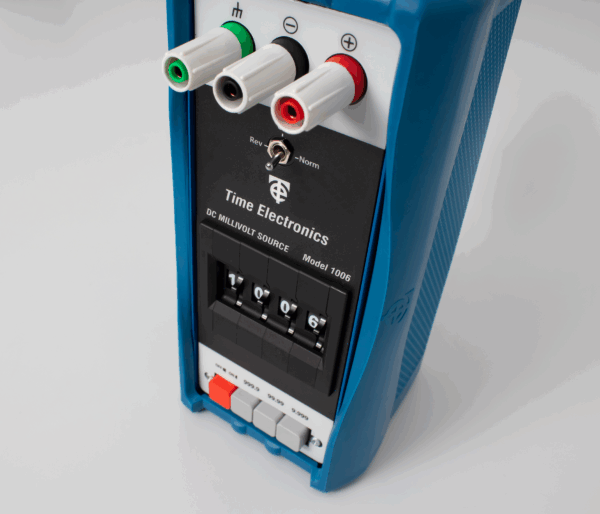

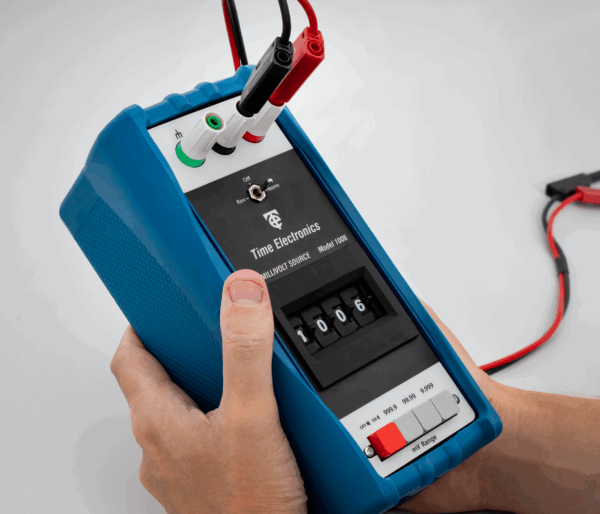

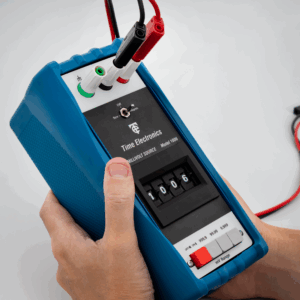

Time Electronics 1006 Portable DC Millivolt Source
Features
- 3 ranges up to 1 V
- Accuracy 0.02 %
- 20 mA output current
- Short circuit and overload protected
- Safety terminals
- Durable protective rubber cover
- Portable with 100 hours typical battery life
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
The 1006 is an accurate millivolt source suitable for voltage injection applications. Three output ranges are provided to give adjustable output values from 1 μV to 1 V with a basic 0.02 % accuracy.Â

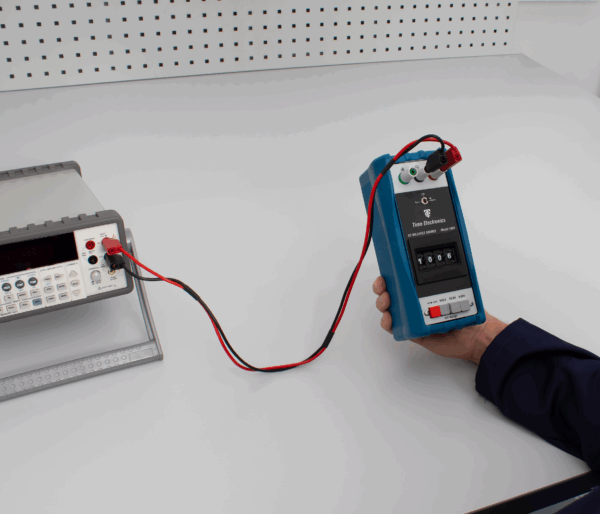

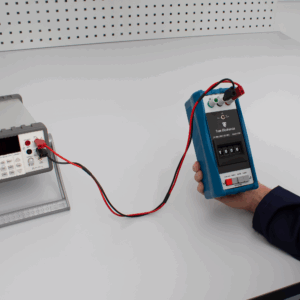

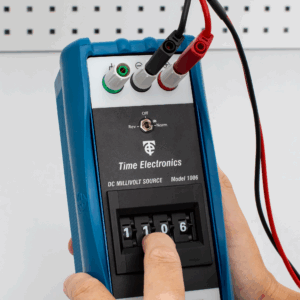

For signal injection, the operator needs to switch on, check the battery condition, select the range, and set the required voltage using the thumbwheel switches. The instrument uses a precision reference diode and low temperature coefficient resistors to give a highly stable output.
Power is provided by 6 AA batteries. Battery life is several months, depending on usage. The battery condition is monitored by an indicator situated on the top of the unit.
The 1006 has up to 20 mA drive current and is short circuit and overload protected. An off/normal/reverse output polarity switch is provided.
