Time Electronics 1044 Voltage and Current Calibrator
Features:
- Measure voltage and current
- Source voltage and current
- 3 voltage ranges 0 to 20 V
- 3 current ranges 0 to 20 mA
- Accuracy 0.05 %
- 3.5 digit LCD display
- Portable with 28 hours typical battery life

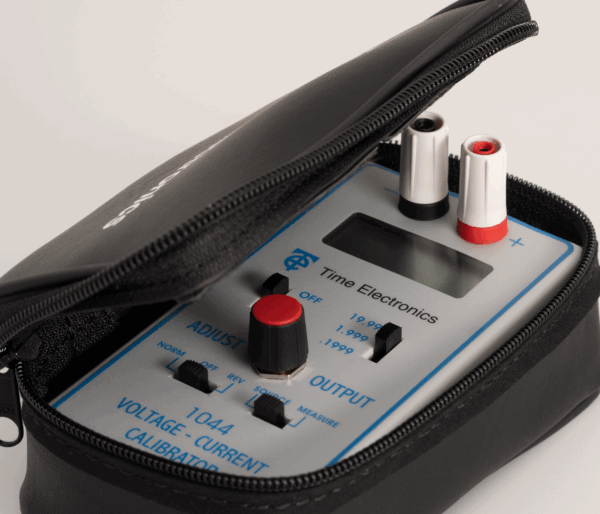

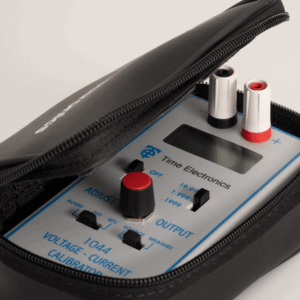

- Supplied with carry case
- Optional mains power supply
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description

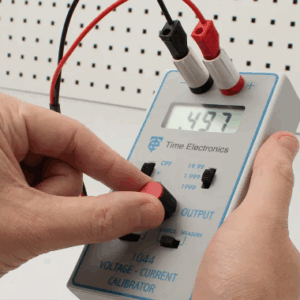

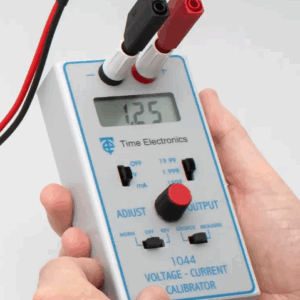

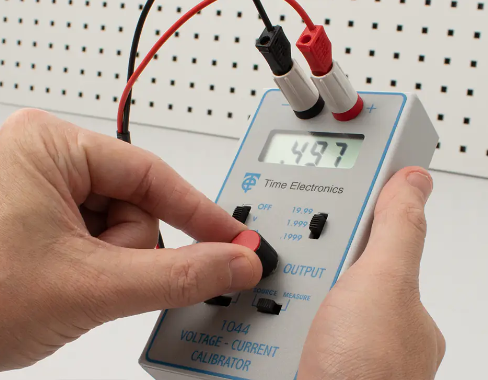

A precision handheld calibrator that can be used as a general purpose current and voltage source. High performance and simple operation make it suitable for test engineers, R&D, service, and calibration technicians.Â
Offering both versatility and practicality the 1044 can source and measure voltage and current. The 0.05 % accuracy makes the instrument suitable for simulation and calibration in various engineering applications, where a compact solution is required.
In the source mode, voltage up to 20 V and current up to 20 mA are generated in three ranges. When in current source mode the 1044 has a high 24 V compliance voltage which is ideal for powering process loops.Â
In the measurement mode, the range and function can be easily selected, with the measured input accurately shown on the LCD display.Â
