Times Electronics 5069
Ideal for field work calibration of Insulation Testers up to 10kV with high accuracy of 1%.
Insulation resistance of 100k Ohm to 100GOhm
Battery charge life of up to 150 Hours
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description

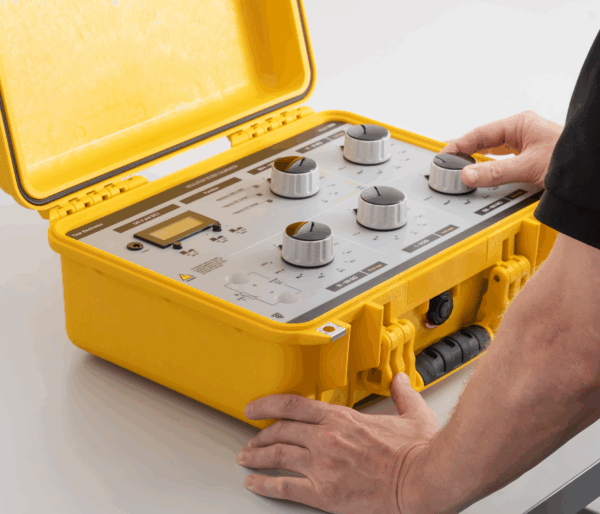

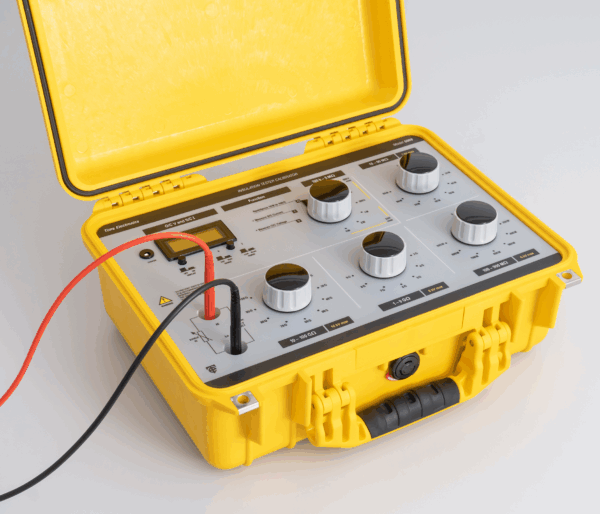

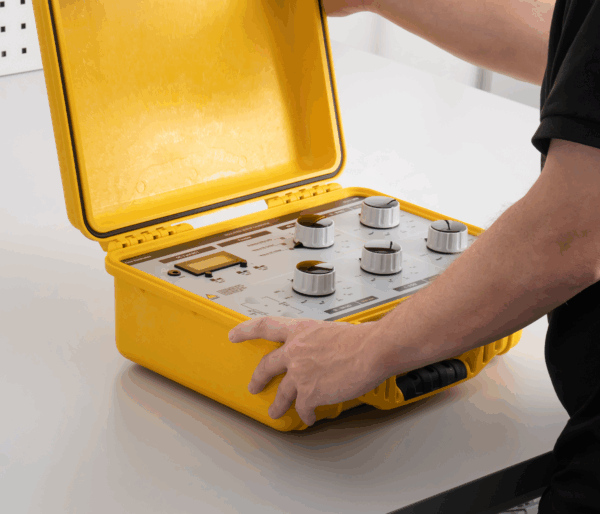

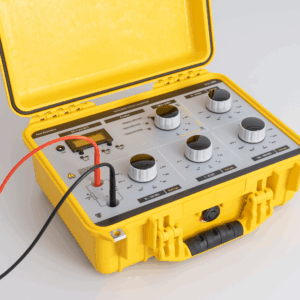

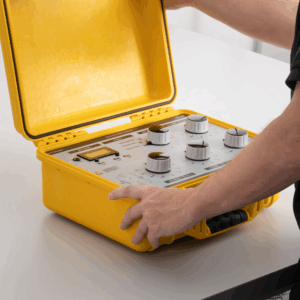

Times Electronics 5069 is a precision instrument suitable for calibrating and testing general purpose insulation testers and megohmmeters with test voltages up to 10 kV.
It is constructed in a high strength co-polymer plastic case and is powered by a rechargeable battery. This ensures full isolation from the mains and prevents stray leakage.

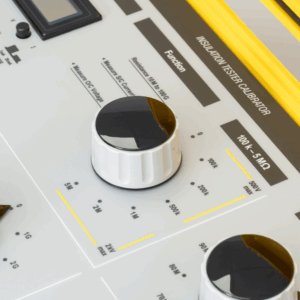

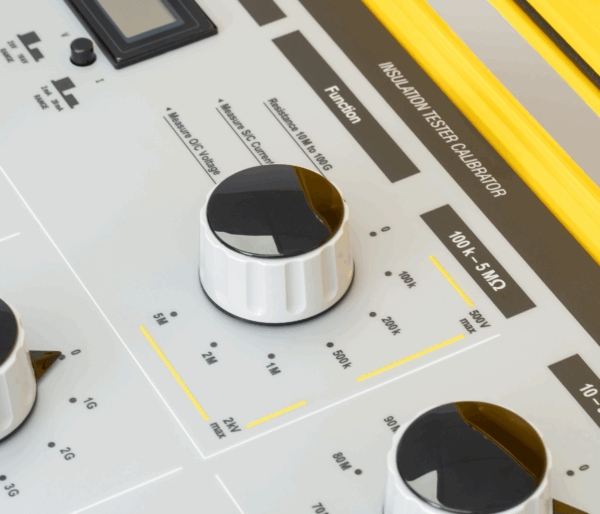

The insulation tester being calibrated can be tested for open circuit voltage and short circuit current. These are displayed on the digital meter mounted on the front panel. The insulation resistance is provided by a precision 4 dial decade resistance bank which can be set to a maximum of 99.99 GΩ with additional resistance values of 100 kΩ, 200 kΩ, 500 kΩ, 1 MΩ, 2 MΩ and 5 MΩ which can be switched in as required.
Rugged and portable, the 5069 is ideal for site calibration work. Also available is the 5068 InsCal Insulation Test Calibrator, 2.5 kV version, and for additional electrical testing capabilities the 5030 calibrator is an excellent solution.
