AEMC 6471 Ground Integrity Measurement
The Digital Ground Resistance Tester Model 6471 is a portable measurement instrument designed to measure Ground Resistance with 2 clamps (sold separately), no auxiliary rods, Bond/Connection Resistance (2-Pole and 4-Pole Kelvin sensing), Ground Resistance (3-Pole or 4-Pole), Ground Coupling Resistance, and Selective Ground Resistance, Soil Resistivity (Wenner or Schlumberger method). The Model 6471 measures from 0.01 to 99.99kΩ and is auto-ranging, automatically seeking out the optimum measurement range, test frequency and test current.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description

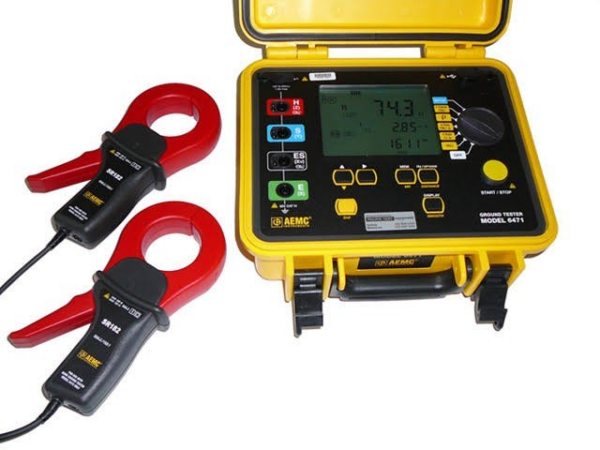

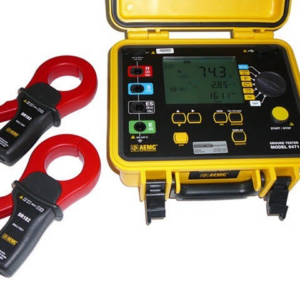

Ground Resistance Tester Model 6471
The Digital Ground Resistance Tester Model 6471 is a portable measurement instrument designed to measure Ground Resistance with 2 clamps (sold separately), no auxiliary rods, Bond/Connection Resistance (2-Pole and 4-Pole Kelvin sensing), Ground Resistance (3-Pole or 4-Pole), Ground Coupling Resistance, and Selective Ground Resistance, Soil Resistivity (Wenner or Schlumberger method). The Model 6471 measures from 0.01 to 99.99kΩ and is auto-ranging, automatically seeking out the optimum measurement range, test frequency and test current.
| 4-Point Earth Resistance Measurement | |
| Range (Auto-Ranging) | 0.01Ω to 99.99kΩ |
| Resolution | 0.001 to 10Ω |
| Accuracy | ±(2% Reading +1ct) |
| Test Voltage | 16 or 32V; 41 to 513Hz |
| Test Current | Up to 250mA |
| Selective 4-Pole (with optional probes MN82 or SR182) | |
| Same characteristics as with 4-point earth resistance measurement | |
| 3-Point Earth Resistance Measurement | |
| Range (Auto-Ranging) | 0.09Ω to 99.9kΩ |
| Resolution | 0.01 to 100Ω |
| Accuracy | ±(2% Reading +1ct) |
| Test Voltage | 16 or 32V; 41 to 513Hz |
| Test Current | Up to 250mA |
| Soil Resistivity 4-Point Measurement | |
| Test method | Wenner or Schlumberger selectable with automatic calculation |
| Range (Auto-Ranging) | 0.01Ω to 99.9kΩ; ρ max: 999kΩm |
| Resolution | 0.01 to 100Ω |
| Accuracy (Typical) | ±(2% Reading +1ct) |
| Test Voltage | 16 or 32V; 41 to 128Hz selectable |
| 2 Clamp Ground Measurement (with optional probes MN82 or SR182) | |
| Range (Auto-Ranging) | 0.1 to 500Ω |
| Resolution | 0.01 to 1Ω |
| Measurement Frequency | Auto: 1611Hz; Manual: 128Hz-1367Hz-1611Hz-1758Hz |
| DC Resistance Measurement (Bond Testing) 2-Pole (with lead resistance compensation) or 4-Pole (Kelvin sensing) |
|
| Range (Auto-Ranging) | 2-pole: 0.12Ω to 99.9kΩ 4-pole: 0.020Ω to 99.99kΩ |
| Resolution | 2 -pole: 0.01 to 100Ω 4-pole: 0.001 to 10Ω |
| Accuracy (Typical) | ±(2% Reading +2ct) |
| Test Voltage | 16V DC; (+, – or auto polarity) |
| Test Current | Up to 250mA |
| Current Measurement (with optional probes MN82 or SR182) | |
| Range | 0.01mA to 40A, 16 to 400Hz |
| Accuracy (Typical) | ±(3% Reading +2ct) typical |
| External Voltage Measurement | |
| Range | 0.1 to 65V AC/DC – DC, 15 to 440Hz |
| Accuracy | ±(2% Reading +1ct) |
| General Features | |
| Memory | 512 measurements (64KB) |
| Communication | USB 2.0 optically isolated, DataView software included |
| Power Source | 9.6V rechargeable battery pack with external 110/220V charger |
| Battery Life | 1500 tests typical in automatic mode |
| Dimensions | 10.7 x 9.80 x 5.12” (272 x 248 x 130mm) |
| Weight | 7lbs (3.2kg) with battery |
| Case | UL V0 Polypropylene |
| Operating Temperature | 32° to +113°F (0° to +45°C) |
| Storage Temperature | -40° to 158°F (-40° to +70°C) |
| Relative Humidity | Up to 90% |
| Ingress Protection (IP) | IP 53 with cover closed |
| EMC | EN 61326-1 |
| Safety Compliance | IEC 61010-1, EN 61557, 50V CAT IV, Pollution Degree 2 |
