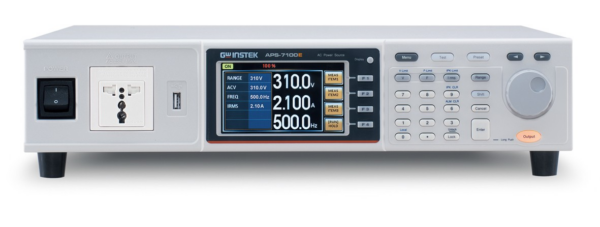

APS-7000E AC Power Sources
Features
- 4.3 inch TFT-LCD Display
- Output Capacity: APS-7050E(500VA, 310Vrms, 4.2/ 2.1Arms), APS-7100E(1000VA, 310Vrms, 8.4/ 4.2Arms)
- Only 88mm(2U) case height
- Measurement function comprises Voltage, Current, Power, Current(peak), Frequency, Power Factor
- 10 sets of the Test mode simulate power transient output
- 10 sets of Preset allow users to store ten settings
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
GW Instek launches the APS-7000E series the economy version of the APS-7000 programmable AC power source. With the height of 2U, the maximum rated output for APS-7050E is 500VA, 310Vrms, 4.2Arms and APS-7100E is 1000VA, 310Vrms, 8.4Arms. The output frequency range of the series is 45~500Hz. The series is ideal for the test and development of DC power supply devices, consumer electronics, automotive electronics and electronic components.
The APS-7000E series comprises six measurement and test functions (Vrms, Irms, F, Ipk, W, PF), and provides user interface similar to that of AC Power Meter. The APS-7000E series, via switching many sets of current levels to increase small current measurement resolution, is ideal for the LED industry and standby mode power consumption test. Ten sets of Preset allow users to store ten settings
To meet the test criteria of line voltage fluctuation often seen in consumer electronics, the APS-7000E series not only provides a stable AC power source but also features the Test mode to satisfy special or abnormal voltage and frequency variation demands. Ten sets of the Test mode simulate power outage, voltage rise, and voltage fall. The APS-7000E series that simulates waveforms of city power grid’s transient changes is suitable for verifying electronics products operated under abnormal power source.
The APS-7000E series is the economy version of the APS-7000 series. If communications interface and larger voltage/frequency are required, please refer to the APS-7000 series. The functionality comparison between the APS-7000 series and the APS-7000E series is listed on this NPI.
