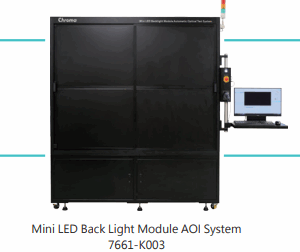

Chroma MINI LED BACKLIGHT MODULE AUTOMATIC OPTICAL TEST SYSTEM MODEL 7661-K003

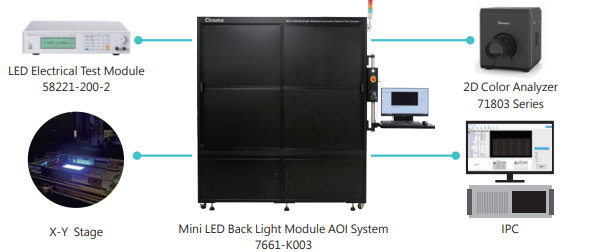

Chroma 7661-K003 Mini LED Backlight Module Test System offers comprehensive testing of backlight modules. A wide range of selectable functions customize the system to the UUT’s photoelectric characteristics and test requirements. The 7661-K003 combines a 2D color analyzer supported by a Z-axis system for a variable working distance, and a large-area XY-table for capturing a wide field of view (FOV). The LED electrical tester regulates the power for the UUT. Customizable test fixtures fit various UUT types. The integrated darkroom enclosure blocks the influence of any external light for more accurate measurement and reliable data.
- Description
Description
KEY FEATURES
■ Comprehensive characterization:
– Chromaticity
– Luminance
– Uniformity
– Dies defect
– Voltage / Current
■ Test area: 800 x 600mm
■ Automated:
– XY-table
– LED position searching
– Region of Interest definition
■ Darkroom enclosure
■ GUI Functions for complete
automated testing
■ Detailed analysis of image data
