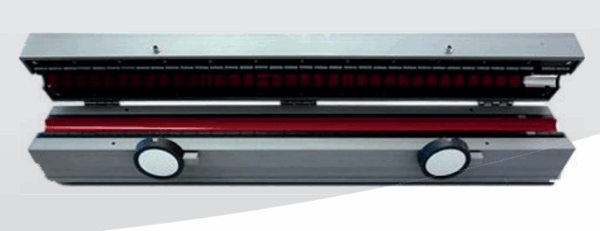

Frankonia ABSORBING CLAMP – ACF-01B
acc. to CISPR-16-1-3, EN 55014-1
Technical data
- Frequency range: 30 MHz to 1000 MHz
- Typical insertion loss acc. to CISPR-16: 17 dB ±4 dB
- Decoupling (typ.): 1 MHz -30MHz: 5dB – 20dB, >20dB from 30MHz to 1 GHz
- Impedance: 50 Ω
- Max. input current (peak): 30 A
- Input power (peak): 5 W
- Max. cable diameter: 20mm
- Dimensions (B x H x D) in mm: 600 x 105 x 80
- Weight: 6.5kg
EMI power dBpW = Measured Voltage dBµV + (Correction Clamp dB incl. optional Attenuator)
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
The absorbing clamp is used for measurements according CISPR 13 / 14 / EN 55014-1, etc. In measurement setup the power cord of equipment under test has to be extended to a length of 6m. The cable is fed through the clamp’s opening and put on a nonmetallic table. It is connected to a power supply. The measuring receiver is connected to the 50 Ohms output of the clamp. The clamp, which is moveable on wheels, is driven along the cable to the power supply. If decoupling of the clamp is too weak, an optional decoupling clamp could be used on the power line close to the power plug. The detected maximum resonance is the requested measuring value. As the clamp is constructed to have 17dB coupling attenuation the receiver voltage (dBµV) is equal to the interference power (dBpW). A 6dB attenuator at the clamps output increases the measuring accuracy as described in CISPR 16-1-3 and the measuring result has to be corrected acc. to the attenuator’s value.
