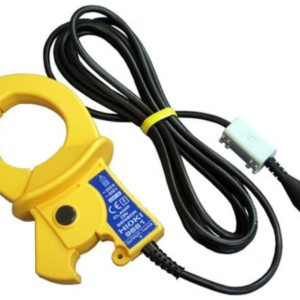

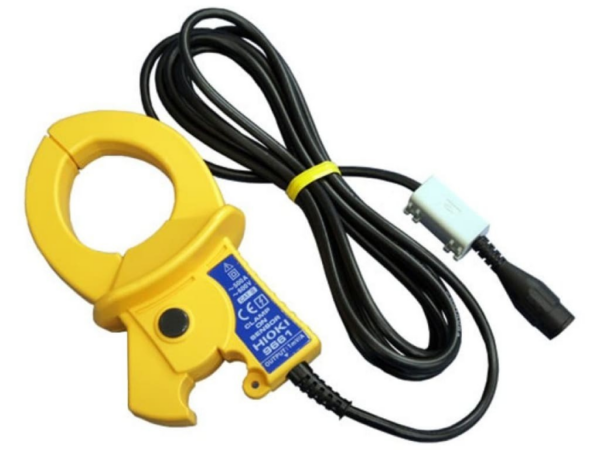

Hioki 9661 CLAMP ON SENSOR
Clamp-On Voltage Output Sensor, 500A
Connect this clamp-on sensor to your compatible device to measure the voltage of inverters or commercial power lines.
The sensor is capable of measuring up to 500A AC continuously.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
CLAMP ON SENSOR 9661, For measuring load current, voltage output sensor
500 A AC.
Overview
Hioki current sensors are best-in-class devices for use with power meters and PQAs. The 9661 is a 500 A AC clamp sensor with voltage output for measuring load current.
Key Features
- For inverter devices or commercial power lines
- Measure up to 500 A
- For measuring inverter devices or commercial power lines
- Compatible with Hioki 3196 model, as well as other power quality analyzers, power meters and Memory HiCorders (sold separately)
- Built to handle up to 500A of input current and delivers up to 500mVAC output voltage
- Withstands up to 600Vrms AC voltage to Earth
- 3m cord provides a comfortable reach
Rated Input Current: Â Â Â Â Â Â Â Â Â Â 500A AC
Rated Output Voltage:Â Â Â Â Â Â Â Â Â Â 500mVAC full scale (1mV/A AC)
Amplitude Accuracy:           ±0.3% of reading, ±0.01% full scale (45 to 66Hz)
Phase Accuracy:           ±0.5° (at 45Hz to 5kHz)
Maximum Allowable Input: Â Â Â Â Â Â 550Arms continuous (45 to 66Hz)
Frequency:               40Hz to 5kHz with ±1% or less (deviation from accuracy)
Maximum Rated Voltage to Earth:Â Â 600Vrms AC (insulated wire)
Core Diameter: Â Â Â Â Â Â Â Â Â Â Â Â Â Â 46m
CE Compliant: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes
Product Length: Â Â Â Â Â Â Â Â Â Â Â Â Â Â 42mm main unit, 3m cord
Product Width: Â Â Â Â Â Â Â Â Â Â Â Â Â Â 77mm
Product Height:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 151mm
Product Weight               380g
