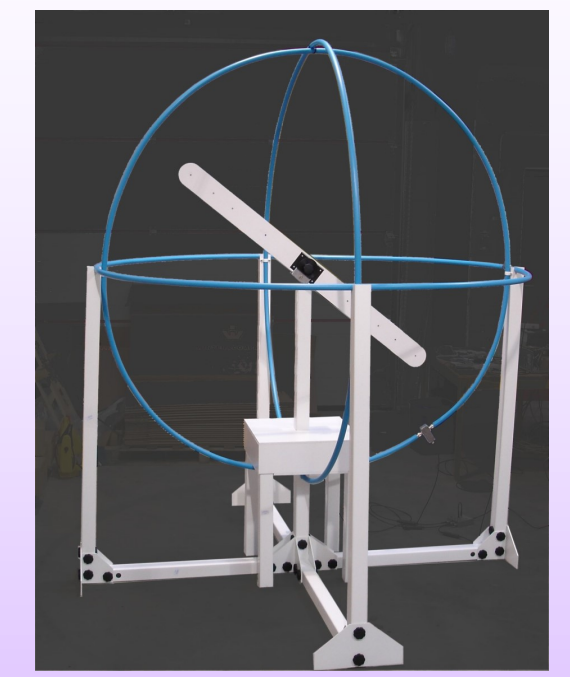

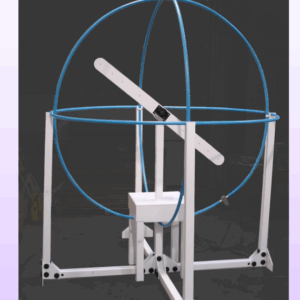

Laplace Van Veen Loop RF300
Large Loop Antenna RF300
For EMC Emissions Testing of Luminaires according to EN 55015
- Fully compliant with CISPR15
- Complete 3 axis design.
- Fully calibrated, 9KHz—30MHz.
- Simple to erect..
- Affordable – low cost.
- Compatible with any EMC receiver or analyzer.
- Description
Description
Specifications:
- Design: Fully compliant with CISPR15/ EN 55015
- Loops: Triple independent loops, 2m diameter.
- Frequency: 9KHz—30MHz.
- Sensors: Matched, inductively coupled current sensors.
- Selector: Loop selection by patch panel.
- Output: 50 ohm BNC.
- Cabling: Each loop includes co-ax cable fitted with ferrite
- Toriods, plus 5m output cable.
- Calibration: Each axis individually calibrated according to
- CISPR16. Certificate and calibration data included.
- Antenna factor: Matched to CISPR16. 9KHz—30MHz,
- Power required: None.
- Physical: Height: 2.6m
- Width (X and Y): 2.1m
- Shipping weight: 30kg
