MECHANICS/ Ballistic Pendulum Experiment, EX-5511A
The complete solution for studying the velocity and angular displacement of a pendulum using and PASCO sensors & equipment. This complete solution is designed for use with PASCO Capstone Software.
WHAT’S INCLUDED
- 1x PASPORT Rotary Motion Sensor
- 1x Mini Launcher
- 2x Photogate Head
- 1x Photogate Mounting Bracket
- 1x Mini Ballistic Pendulum Accessory
- 1x Large C Clamp (6 Pack)
- 1x 45 cm Stainless Steel Rod
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description

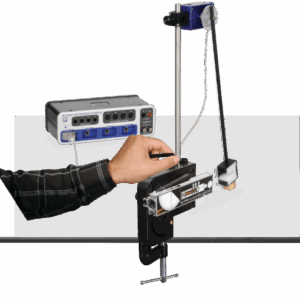

PASCO’s Rotary Motion Sensor is the heart of this modern approach to a classic physics experiment. The Mini Launcher (ME-6825B) fires a steel ball into the foam catcher of the Ballistic Pendulum Accessory (ME-6829) mounted on the Rotary Motion Sensor. The Rotary Motion Sensor measures the angular displacement of the pendulum and it is plotted in real-time in PASCO Capstone.
There is no need to catch the pendulum at its maximum height because the angle is continuously measured. Using the analysis tools in PASCO Capstone, students can find the maximum angle.
Using Conservation of Momentum and Conservation of Energy, students can determine the initial speed of the ball as it leaves the projectile launcher. The initial speed of the ball is confirmed by using two photogates to time the flight of the ball for a short distance.
Concepts
- Modern approach to a classic experiment
- View graph of entire pendulum swing
- Conservation of momentum
- Conservation of energy
