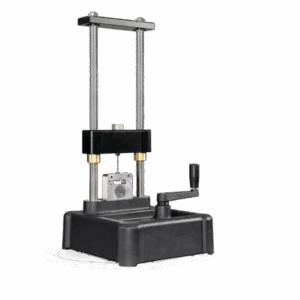

Mechanics-Materials Testing System
Integrated system for tensile testing, measures both force and position. Includes coupons, AirLink interface and Capstone software.
WHAT’S INCLUDED
See the Product Description for this item’s included accessories.
WHAT TO CONSIDER
See the Buying Guide for this item’s required, recommended, and additional accessories.
- Description
Description
The PASCO Materials Testing System includes everything needed to do tensile testing straight out of the box. The Materials Testing Machine connects to a computer’s USB port using the included PASCO Airlink interface. Six sets of different tensile sample materials (each with 10 samples) are included.
The system is completed by PASCO’s Capstone Software, which has a built-in calibration wizard and all the tools to record and display stress vs. strain, and to apply linear fits to find Young’s Modulus. Also records and plays back webcam movies of the breaking samples, synced to the data.
The software uses automatic variable oversampling, which means when the sampling rate is high, no smoothing is applied, but as the sampling rate is decreased, the program automatically samples at the higher rate and averages the samples.

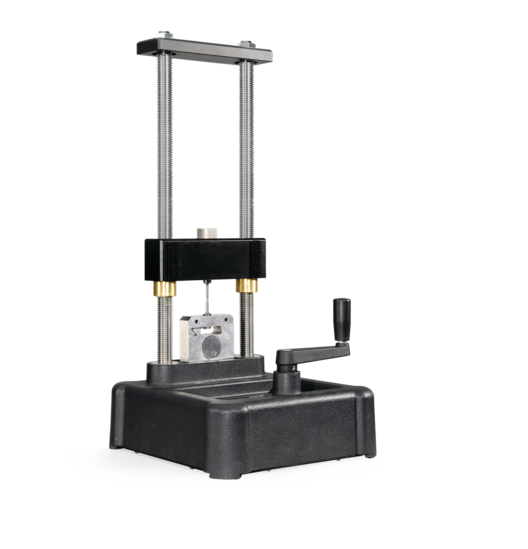

The Materials Testing Machine measures force with a 7100 N load cell and displacement using an optical encoder.
Features
Measures up to 7100 N (1600 lbs)
Tabletop design saves lab space
Easy to set up and calibrate
Minimal maintenance
Inexpensive replacement coupons and samples
Tensile samples produce fracture surfaces students can study
Sync real-time video to data and replay in slow motion
Manual hand crank to help students feel material strengths
Utilizes PASCO Capstone software
With use of web cam and video analysis, determine true stress with changing diameter
What’s Included
1x Materials Testing Machine
1x Compliance Calibration Rod
2x Safety Shields
10x Steel Tensile Sample (ME-8243)
10x Aluminum Tensile Sample (ME-8231)
10x Brass Tensile Sample (ME-8232)
10x Annealed Steel Tensile Sample (ME-8233)
10x Acrylic Tensile Sample (ME-8234)
10x Polyethylene Tensile Sample (ME-8235)
1x AirLink (PS-3200)
1x PASCO Capstone Single User License (UI-5401)
