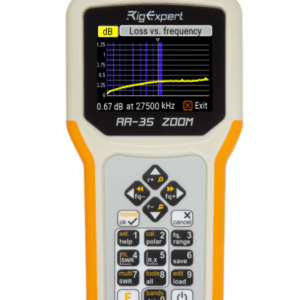

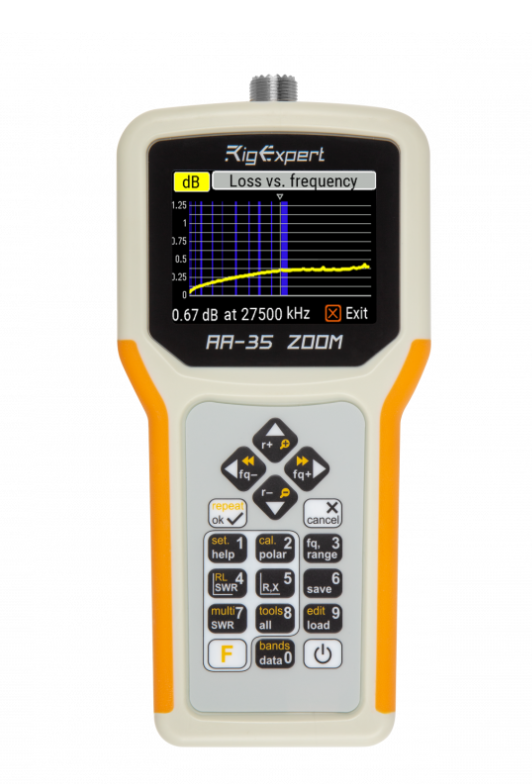

RigExpert AA- 35 ZOOM 0.06 to 35MHz cable analyzer
Original price was: $575.00.$475.00Current price is: $475.00.
Customers outside of New Zealand, such as Australian and Pacific Islands, to avoid paying GST, please call our Australian or New Zealand numbers and we will arrange the sale.
!!!!! ONLY 1 LEFT AT THIS PRICE !!!!!
AUS:+61 2 913 96 981 NZ: +64 9 448 2600
The Rig Expert AA-35 is the most powerful cost effective cable analyzer on the market. Packed with features that fits in the palm of your hand and at an affordable price.
- Description
Description
Frequency range: 0.06 to 35 MHz
Frequency entry: 1 kHz resolution
Measurement for 25, 50, 75, 100 Ohm systems
SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes
R and X range: 0…1000, -1000…1000 in chart modes, 0…10000, -10000…10000 in numerical modes
Display modes:Â R, X chart, 100 points, SWR chart, 100 points, SWR, return loss, R, X, Z, L, C at single frequency
RF output:
–  Connector type: UHF (SO-239)
–  Output signal shape: square
–  Output power: -13 dBm (at 50 Ohm load)
Power:
Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used, Two 1.2V Ni-MH batteries, type AA, Two 1.5V alkaline batteries, type AA, When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Interface:
320×240 color TFT display, 6×3 keys on the water-proof keypad, Menus and help screens in English (by default), Japanese, French, Ukrainian, USB connection to a personal computer
Accessories inside the box: Soft case, Alkaline batteries, USB cable, Manual
Dimensions:Â 103 mm x 207 mm x 37 mm (4.1 in x 8.1 in x 1.4 in)
Operating temperature: 0…40 °C (32…104 °F)
Weight: 310g (10.9 Oz)
