WAVES & OPTICS/ Mechanical Waves Experiment, EX-9952
The complete solution for conducting a series of experiments in the area of mechanical waves.

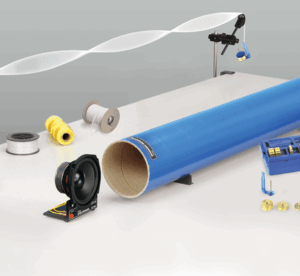

WHAT’S INCLUDED
- 1x String Vibrator (WA-9857A)
- 1x Sine Wave Generator (WA-9867)
- 1x Open Speaker (WA-9900)
- 1x Economy Resonance Tube (WA-9495)
- 1x Elastic Wave Cord (SE-9409)
- 1x Braided Physics String (SE-8050)
- 1x Mass and Hanger Set (ME-8979)
- 2x Universal Table Clamp (ME-9376B)
- 1x Adjustable Angle Clamp (ME-8744)
- 1x Super Pulley (ME-9450A)
- 1x Pulley Mounting Rod (SA-9242)
- 2x 45 cm Stainless Steel Rod (ME-8736)
- 1x Banana Plug Cord-Red (5 Pack) (SE-9750)
- 1x Waves Experiment Manual
- Description
Description
Standing waves in strings and air columns are studied. Using a sine wave generator to drive a string vibrator, the driving frequency, length, density, and tension of the string are varied to explore standing waves in strings and to determine the speed of the wave. For the sound waves in the air column, a speaker is used to drive a resonance tube. The driving frequency and the length of the tube are varied for both open and closed tubes. The relationship between resonant frequency modes and tube length is determined for closed vs. open tubes.
PASCO Advantage: The frequency of the vibration of the string is not limited to the line frequency, so the frequency can be varied as well as the length and the tension.
Concepts
- Speed of waves in a string
- Speed of sound in air
- Resonance in strings and air columns
- Harmonics
