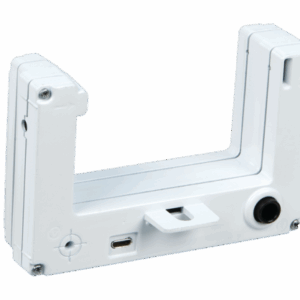

Wireless Smart Gate, PS-3225
The Wireless Smart Gate has all the features of the wired Smart Gate plus the added flexibility of wireless connection to your data collection system.
WHAT’S INCLUDED
1x Smart Gate
1x PASPORT Cable
WHAT TO CONSIDER
See the Buying Guide for this item’s required, recommended, and additional accessories.
- Description
Description
The Wireless Smart Gate has all the features of the wired Smart Gate. It has dual photogate beams spaced at 1.5 cm to accurately measure speed. The built-in laser switch (when used with any laser) allows you to time objects too large to fit through the standard photogate. Use Photogate Tape passing through the photogate slot to measure movement of objects. The auxiliary port is for adding an additional photogate head or Time-of-Flight Accessory.
We do not recommend using two Wireless Smart Gates in the same experiment unless the measured times are relatively long (greater than one-half second) since synchronization is limited to 2 ms.
