ELECTROMAGNETISM/ Ohm’s Law Experiment, EX-5535

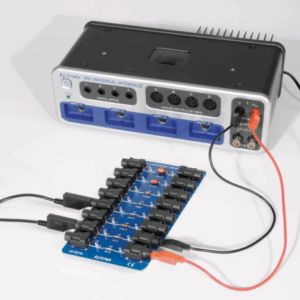

The complete solution for studying the use of a capacitor as a variable voltage source to discover the relationship between Voltage and Current. This complete solution is designed for use with PASCO Capstone Software.
WHAT’S INCLUDED
- 1x Resistor Capacitor Inductor Network
- 8x Banana Plug Cord Sets, 30 cm Length
- Description
Description
In this experiment, students simultaneously measure both current and voltage for a simple DC circuit. The relationship between current and voltage is explored for different resistors in parallel. Voltage is graphed vs. current to verify Ohm’s Law and recognize the physical meaning of slope.
