Pasco • EM-8615 Transformer Coils Set
The PASCO EM-8615 is a versatile, lab-ready device designed to support hands-on exploration of electromagnetic principles. Built for reliability and ease of use, it helps students connect theory to real-world measurement through clear, repeatable experiments.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description

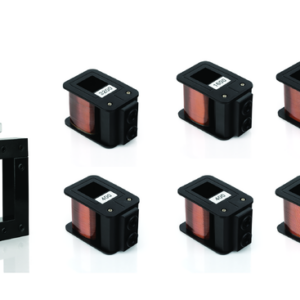

These high-quality coils and laminated iron core provide an effective introduction to electromagnetic induction in transformers. Purchase them individually or as a complete set. Each coil is labeled with the number of turns, the direction of the winding, and the maximum current. Use them to investigate:
Electromagnetism: Show how the magnetic field can be increased by increasing the current, by adding an iron core, or by using a coil with more turns.
Induction: Pass a magnet through a coil and detect the resulting electromotive force (EMF) with a galvanometer. Show how the EMF depends on the number of turns in the coil and on the relative velocity of the magnet and coil.
Transformers: Mount coils onto the U-shaped iron core to demonstrate mutual inductance and transformer theory. Then connect a load to investigate power transfer. Investigate basic transformer theory with an AC power supply and a voltmeter. Advanced principles require a high power output function generator and an oscilloscope. For more in-depth experiments, use a computer with PASCO’s 850 Universal Interface or 550 Universal Interface.
Perform These Experiments
- Explore the effect of the core on transformer coils
- Current gain as a function of the number of turns in the primary and secondary coils
- Voltage gain as a function of the number of turns in the primary and secondary coils
- Power output compared to power input
- Voltage gain as a function of frequency
- Magnetic hysteresis of the core
- Induce a voltage by passing a magnet through one coil
