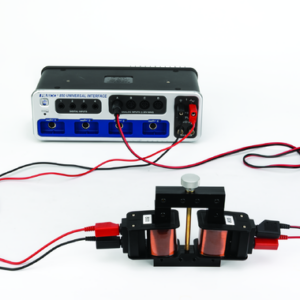

Pasco • EX-5566 Ferromagnetic Hysteresis
The EX-5566 Ferromagnetic Hysteresis apparatus enables clear, hands-on investigation of magnetic hysteresis and material behavior. Designed for classroom and lab use, it helps students visualize magnetization, coercivity, and energy loss through direct experimentation.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
Study the hysteresis plot for a ferromagnetic core in a transformer. A varying magnetic field is generated in a transformer iron core by applying a triangle wave voltage to the primary coil. The magnetic flux density, B, is plotted versus the magnetic field strength, H. From this hysteresis plot, the value of B at saturation is determined, as well as the retentivity and coercivity of the ferromagnetic core.
To determine the magnetic flux density in the core, the voltage across the secondary coil is measured and plotted versus time. Using Faraday’s Law of Induction, the area under the voltage versus time curve is the integral of the induced emf, which is proportional to the magnetic flux density.
The magnetic field strength is determined by measuring the input current to the primary coil.
Students analyze the B versus H plot to find:
- The area inside the curve is a measure of the energy/volume lost per cycle.
- The retentivity is the amount of magnetic flux density that the material retains when there is no current in the coils.
- The coercivity is the amount of reverse magnetic field strength that is required to make the magnetic flux density zero again.
