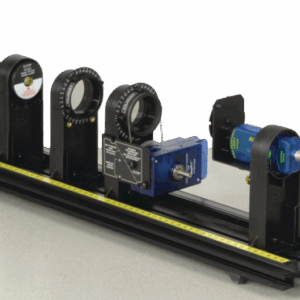

WAVES & OPTICS/ Polarization Experiment, EX-5543A
The complete solution for verifying Malus’ Law of Polarization.
WHAT’S INCLUDED
- 1x Polarization Analyzer — Basic Optics (OS-8533A)
- 1x Electromagnet
- 1x Optics Benches (60 cm) (OS-8541)
- 1x Power Supply
- 1x Red Diode Laser – Basic Optics (OS-8525A)
- 1x Optics
- 1x PASPORT High Sensitivity Light Sensor (PS-2176)
- 1x Tesla Meter
- 1x PASPORT Rotary Motion Sensor (PS-2120A)
- 1x PASCO Capstone Single User License
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
In this experiment, Malus’ Law of Polarization is verified by showing that the intensity of light passed through two polarizers depends on the square of the cosine of the angle between the two polarization axes.
Laser light (peak wavelength = 650 nm) is passed through two polarizers. As the second polarizer (the analyzer) is rotated by hand, the relative light intensity is recorded as a function of the angle between the axes of polarization of the two polarizers. The angle is obtained using a Rotary Motion Sensor coupled to the polarizer with a drive belt. The plot of light intensity vs. angle can be fitted to the square of the cosine of the angle.
PASCO Advantage: Laser light is used in this experiment because its wavelength is more completely extinguished by the crossed polarizers.
Designed for use with any of the following
- 850 Universal Interface
- 550 Universal Interface
- Any PASPORT interface with 2 ports
Concepts
- Measure the Zeeman Effect with polarization perpendicular and parallel to the field
- Observe the light along the magnet axis
- Calculate the value of the Bohr magneton
- Malus’ Law of Polarization
