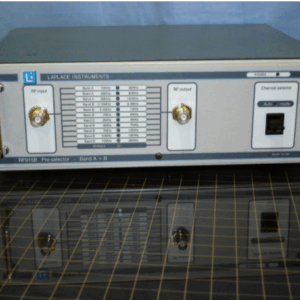

Laplace Pre-selectors RF910/RF915
These Pre-Selectors are high specification, switched band filters which track the scanning of the EMC Analyzer. Control is via USB link from the Laplace EMC Engineer software supplied with SA1002 and SA3000 analyzers. Installation and operation is completely automatic, and the filters will synchronize with the analyzer scan without any operator intervention. A front panel switch allows manual operation if required.
Two models are available:
RF910 Band B, 150KHz – 30MHz. 8 filter bands
RF915 Band A & B, 9KHz – 30MHz. 13 filter bands
Pass band attenuation is just 4dB and out-of-band rejection is nominally 40dB.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
Key Points
- Fully automatic operation.
- Band A (RF910)and band A+B (RF915) versions.
- No active components in RF path, so very high noise tolerance.
- 5 + 5 pole filters for high out-of-band rejection.
- Can be used with any EMC analyser.
- Compact and cost effective.
