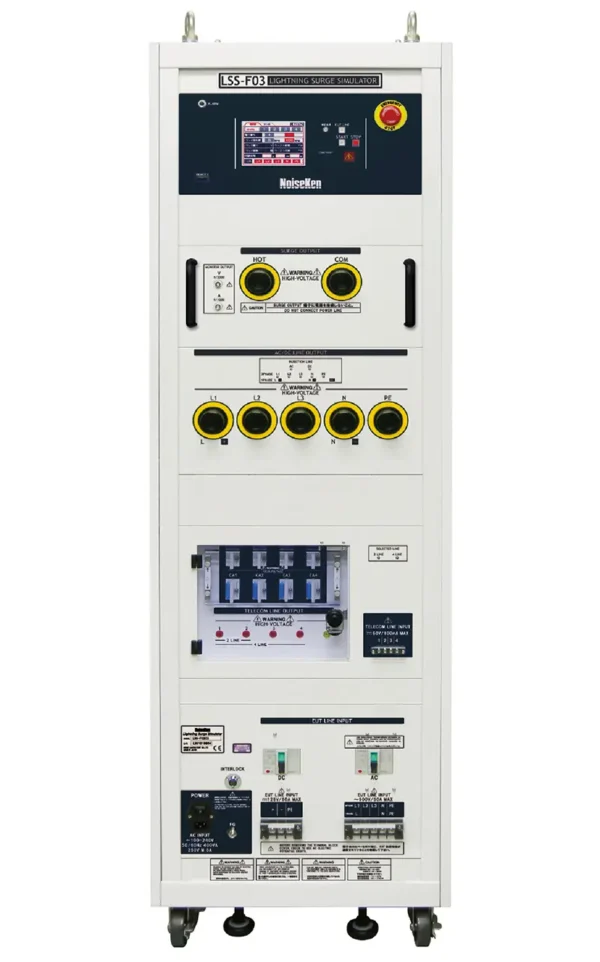

NoiseKen Lightning Surge Simulator LSS-F03 series
Categories
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
For a stricter test with a maximum voltage of 15 kV
A tester simulatively generates “High energy induced lightning noise” which induced to distribution lines or communication lines by ground potential fluctuation caused by lightning strikes.
Features
- Lightning surge simulator compliant with the IEC61000-4-5 Edition 3 requirements
- Maximum output voltage 15 kV (maximum coupling of 15 kV to AC / DC CDN and 6 kV to Telecom CDN)
Enables to conduct the more extended reliability test including the destructive test - Large size LCD for the operation is adopted for realizing better visibility and operatability
- Easy operation for the sequential tests with adoption of MPU control. Surge output / Waveform switching / Polarity switching / Sequence can be automated sequentially
- Selectable either MANUAL or PROGRAM mode MANUAL modes is used for the test according to the Standard or performing single conditioned test and PROGRAM mode can perform different conditioned tests sequentially so that the tests can be performed easily along purposes.
- Excellent safety with equipment of interlock
- Standard equipment of terminal for checking the waveforms: Enable to check the waveforms in connection to an oscilloscope with a BNC cable
- Isolation transformers available (Option)
- In order to avoid resonance with the power supply, possible to vary the constant of the decoupling network (1.5，1.3，1.0，0.8 mH) (Customized production). When some products like a power conditioner for photovoltaic application are connected to a lightning surge simulator, the resonant phenomena may occur and the products may not work well. In LSS-F03 series (with customization), possible to change constants of the inductances so as to avoid such problem.
